    Detail

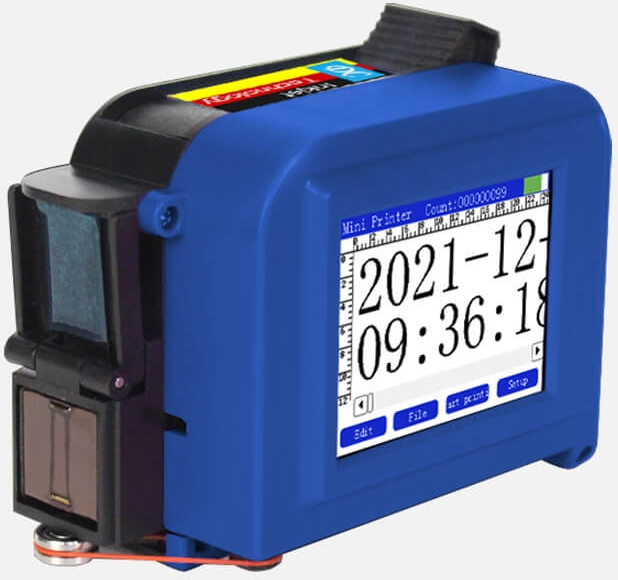

    AIMS brand (made in Taiwan) World’s Smallest Handheld Non-Contact Ink Jet Printer Model IJP – H2 (12.7 mm), which is a Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Bar Codes, etc. on labels, cartons, pouches, containers, etc. Data to be printed can easily be composed on it’s built in Touch Screen. It is suitable for small objects of variety of shapes and can print on the bottle neck, bottle side or bottom of bottle.

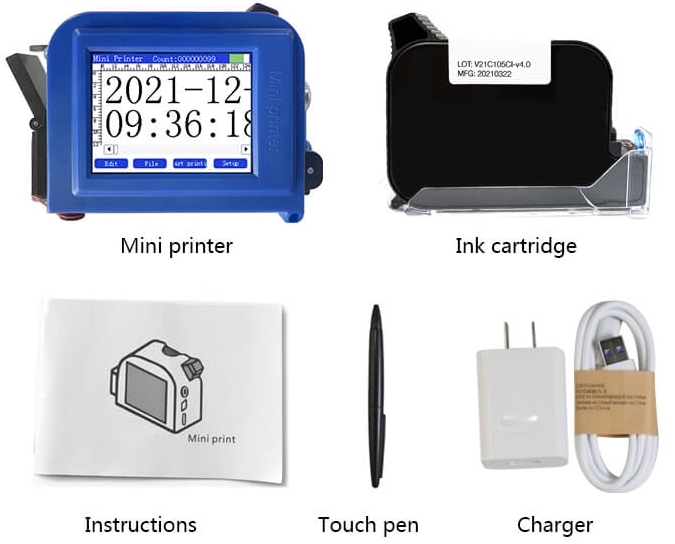

    The system is inclusive of below mentioned accessories worth Rs. 10,000/- free of cost:

    a.  Carry Case with molded slots for printer & accessories.

    b.  1 No. 2200 mAh Rechargeable Batteries.

    c.  1 No. disposable Pre-mix Black ink cartridge.

    d.  Operator Tool Kit, Operation & Maintenance Instruction Manual.

    This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 5 Paise per impression (25 char).

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – H2

    Display

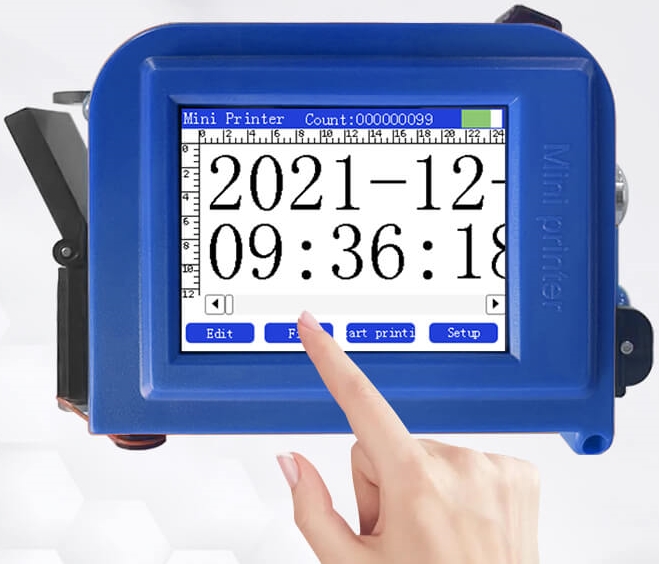

    4.3” full color HD Touch Screen LCD with LED backlight.

    Languages

    English, German, French, Turkish, Arabic, Chinese, etc.

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR

    Printing Area

    1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.

    Printing Direction

    Adjustable at any angle within 360 degree

    Printing Speed

    Max. 60 meters/min for 1 to 6 line printing at 300-600 dpi

    Prints Using

    Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink

    Print Distance

    Max. 6 mm from substrate down or in front.

    Inking Medium

    42 cc disposable pre-mix ink in Cartridge form with head.

    Printing Medium

    Solvent/Oil based inks (black, white, red, blue, yellow, etc.)

    Ink Drying Time

    Min. 5 seconds on plastics & laminates.

    Impressions

    Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink

    Operating Range

    10 ~ +38ºC, 10% - 80% RH, non-condensing.

    Supply Voltage

    90 - 240 Vac, 50/60 Hz, 150 mA

    Battery Voltage

    12.6 V lithium battery, 10 hours use / 20 hours standby

    Dimensions

    L120 x H112 x D50 mm

    Weight

    360g excluding cartridge.
