Detail

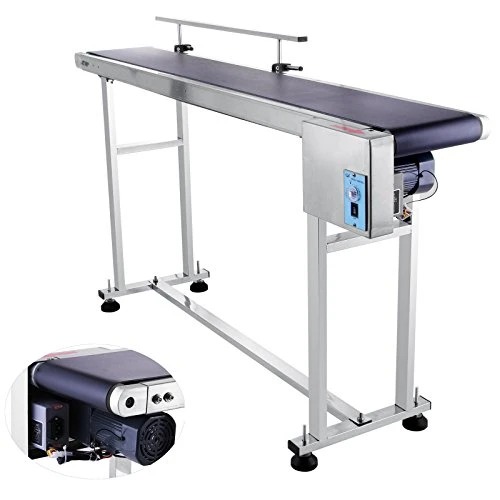

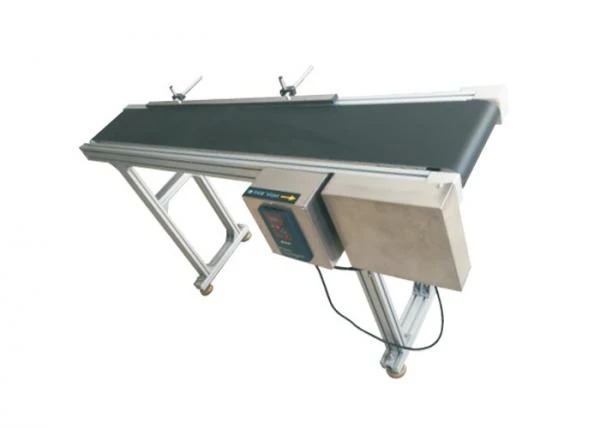

Continuous flat belt Stainless Steel variable speed conveyor Model FBC – 1500C (12” x 1500mm) with PVC conveyor belt of size 300 mm width × 1500 mm long & 700 mm height Stainless Steel machine, having a Variable speed 1 to 15 meters / min. It has adjustable guide for straight guiding of pouches, labels, cartons, bottles, cans, etc. & is suitably designed to provide proper conveyance to objects for proper Ink Jet Printing (Model IJP-P2128 / Prodigit / M3S).

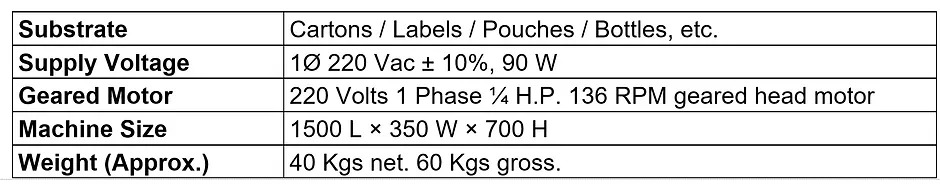

SPECIFICATIONS:
|
Substrate |
Cartons / Labels / Pouches / Bottles, etc. |
|
Supply Voltage |
1Ø 220 Vac ± 10%, 90 W |
|
Geared Motor |
220 Volts 1 Phase ¼ H.P. 136 RPM geared head motor |
|
Machine Size |
1500 L X 350 W X 700 H |
|
Weight (Approx.) |
40 Kgs net. 60 Kgs gross. |
