    • pro3UV Cured On Line Industrial Non Contact Ink Jet Printer Model IJP P2128 UV.jpg

    Detail

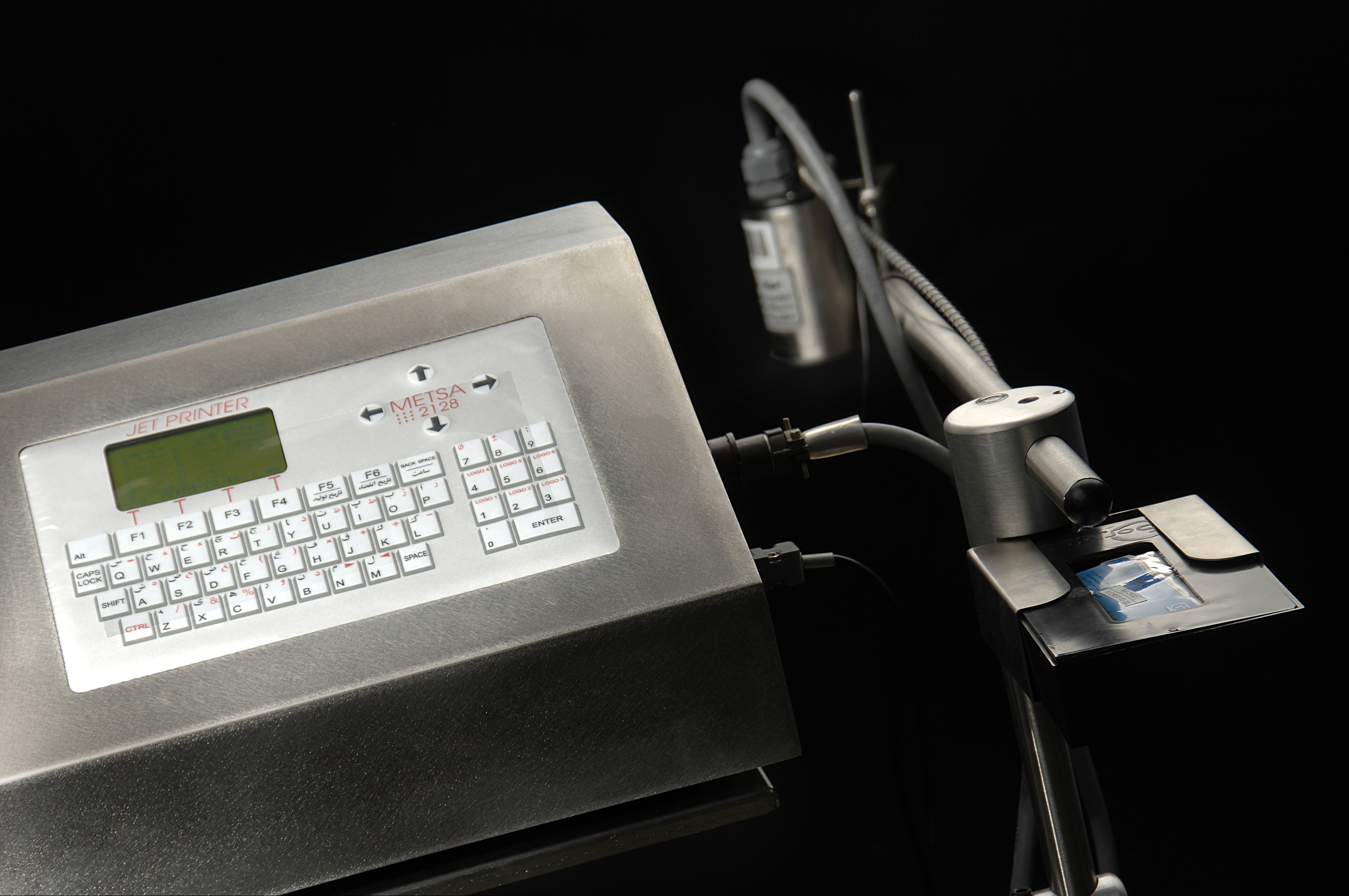

    UV Cured On-Line Industrial Non-Contact Ink Jet Printer Model IJP – P2128 – UV (Maplejet-Canada), which is a Zero Maintenance, high resolution, FOUR line (character height 1 to 18 mm) English / Arabic BLACK Ink printer with Heater using UV Curable Ink which is permanent & cannot be removed. It has Stainless Steel construction & can be installed on Porous & Non-Porous production lines to print B.No., Mfg.Date, Exp.Date, MRP `, Time, Serial No. (AGMARK), etc. on bottles, pouches, labels, cartons, Pipes, etc. Through the COM Port (RS-232) Computer Link, it is also capable of printing High Quality Logos, Scannable Bar Codes, Hindi  / Local Language & upto EIGHT lines data in any Computer Font also with option of 90o traverse print.

    The system is inclusive of below mentioned accessories worth ` 80,000/- free of cost:

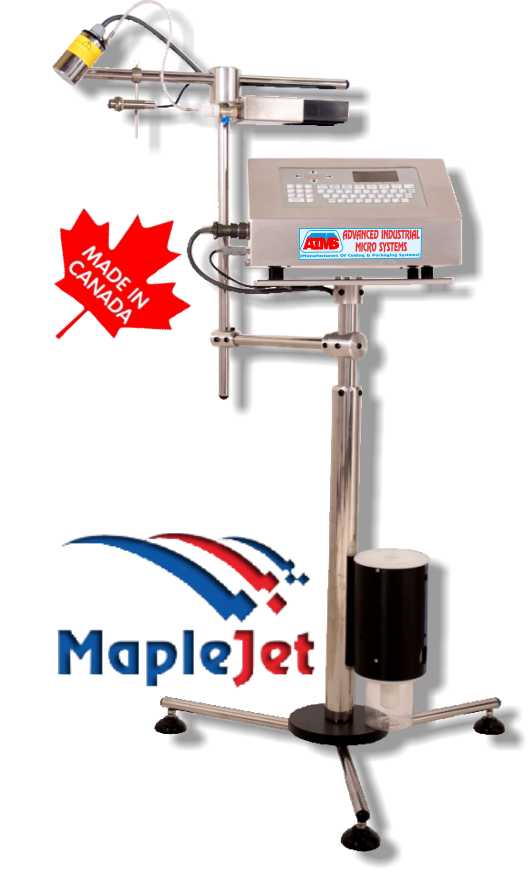

    a.    Stainless Steel Machine Stand with Print head Stand.

    b.    Product Detector with Mounting Bracket.

    c.    1 No. disposable Pre-mix UV ink cartridge, 1 no. UV Cleaning Solvent.

    d.    Operator Tool Kit, Operation & Maintenance Manual.

    This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. Due to the heated UV Inks used, the Printhead might need to be replaced every 6 months to 2 years.

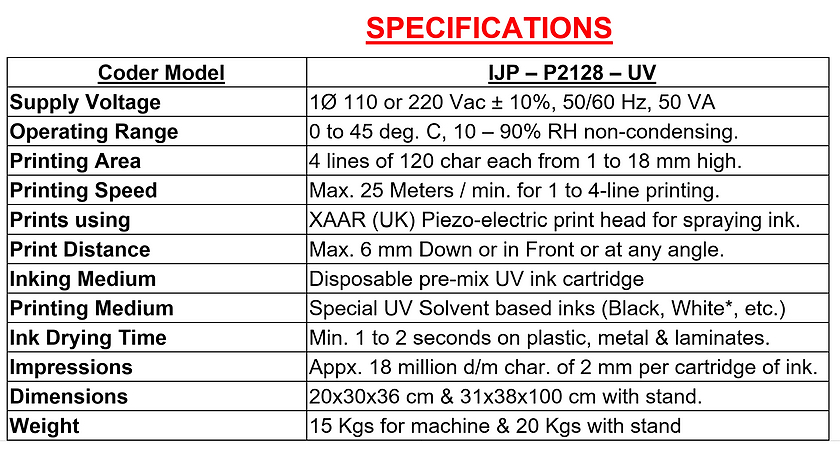

    SPECIFICATIONS

    Coder Model

    IJP – P2128 – UV

    Supply Voltage

    1Ø 110 or 220 Vac ± 10%, 50/60 Hz, 50 VA

    Operating Range

    0 to 45 deg. C, 10 – 90% RH non-condensing.

    Printing Area

    4 lines of 120 char each from 1 to 18 mm high.

    Printing Speed

    Max. 25 Meters / min. for 1 to 4-line printing.

    Prints using

    XAAR (UK) Piezo-electric print head for spraying ink.

    Print Distance

    Max. 6 mm Down or in Front or at any angle.

    Inking Medium

    Disposable pre-mix UV ink cartridge

    Printing Medium

    Special UV Solvent based inks (Black, White*, etc.)

    Ink Drying Time

    Min. 1 to 2 seconds on plastic, metal & laminates.

    Impressions

    Appx. 1 crore dot matrix char. of 2 mm per cartridge of ink

    Dimensions

    20x30x36 cm & 31x38x100 cm with stand.

    Weight

    15 Kgs for machine & 20 Kgs with stand



    COMPARISON OF OUR PRINTER WITH OTHER AVAILABLE PRINTERS



    P2128-UV Ink Jet Printer

    Other Ink Jet Printers Available

    Advantage of our Ink-Jet Printer

    a.

    No Core / Reservoir to be changed.

    Core / Reservoir to be replaced. ` 1,25,000/- ea.

    Hidden cost of Core Systems avoided.

    b.

    Fully Electronic. No mechanical parts.

    Air Pump, Viscosity Control Unit, etc. ` 80,000/- ea.

    Mechanical parts get worn out & fail in time.

    c.

    No Filters for Ink.

    Filter has to be changed regularly. ` 25,000/- ea.

    Very high replacement filter cost saved.

    d.

    Zero maintenance cost.

    Very High Maintenance Cost. AMC` 35,000/-

    Huge Cost saving every Year.

    e.

    Push Fit pre-mix disposable Ink Cartridge.

    Separate Ink, Make-Up & Solvent Bottles.

    Ease of use for the Operator.

    f.

    Simple Ethanol based Inks.

    Methanol (M.E.K.) based Inks.

    MEK is highly toxic for humans.

    g.

    300 dpi High Resolution Printing.

    Very low resolution 60 dpi dot-dot type printing.

    Logos & Barcodes can be printed perfectly.

    h.

    90 Million+ characters per liter of Ink.

    45 Million Characters per liter of Ink + Makeup.

    Very Low Running Cost of Printer.
