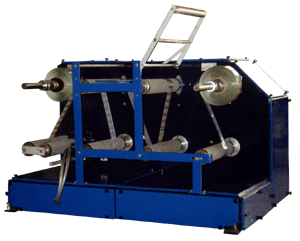

AIMS brand Unwinding & Rewinding Machine Model WRM-500 suitable for high precision marking & coding system for Roll form printing material like polyester film, Glassine poly, Alu - foil, paper & laminated film with (optional Hydraulic web control and alignment system), Hot Air Blower for instant drying of ink & speed Feedback for uniform speed from start to end of roll.
SPECIFICATIONS:
|
Web Width / Weight |
75 – 510 mm. / 40 Kg Max. (500 mm Standard) |
|
Max. Parent reel dia |
300 mm |
|
Max. Rewind reel dia |
300 mm |
|
Rewind Core Dia. |
32 & 38 mm. Std. |
|
Max. designed speed |
90 M / min. |
|
Substrate |
Foil/Film: 9-20 Micron |
|
Motor |
1-HP 3-Ph Induction Motor with Delta Drive |
|
Size (mm) |
L 1500 x W 800 x H 750 mm |
|
Structural Fitting |
M. S. Channel frame body with Mechanical Friction Type unwind system, unwind / rewind shaft & cones for printed material holding cores, for printed material holding cores, alu - Guide Roller & all other standard accessories. |
