Detail

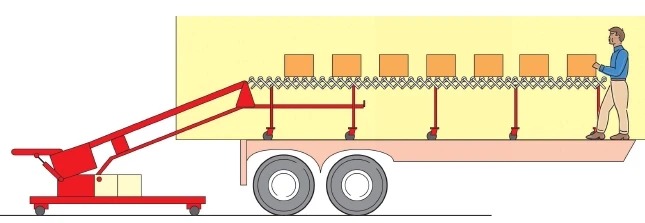

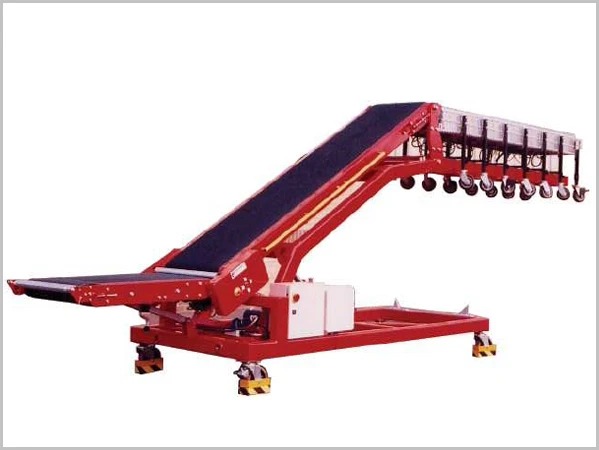

Truck Loading Conveyor Model TLC – 100 is an extremely durable material handling equipment consumes low energy of 440W, has the linear speed of 20 mtr. per min and its carton output speed of 15 to 25 carton per min. These innovative and precisely engineered Truck Loading Conveyor System works from both the directions (Rev/Fwd).We offer high quality & high capacity Truck Loading Conveyor that is used in loading / unloading of boxes and gunny bags into truck and used for moving them into higher places for stacking purposes.

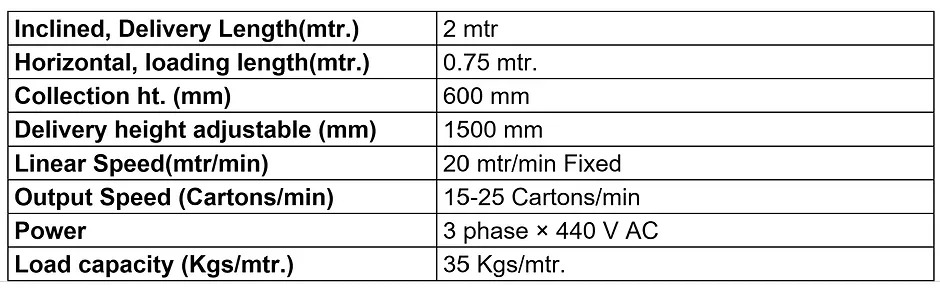

SPECIFICATIONS:
|
Inclined, Delivery Length(mtr.) |
2 mtr |
|
Horizontal, loading length(mtr.) |
0.75 mtr. |
|
Collection ht. (mm) |
600 mm |
|
Delivery height adjustable (mm) |
1500 mm |
|
Linear Speed(mtr/min) |
20 mtr/min Fixed |
|
Output Speed (Cartons/min) |
15-25 Cartons/min |
|
Power |
3 phase × 440 V AC |
|
Load capacity (Kgs/mtr.) |
35 Kgs/mtr. |
