    Detail

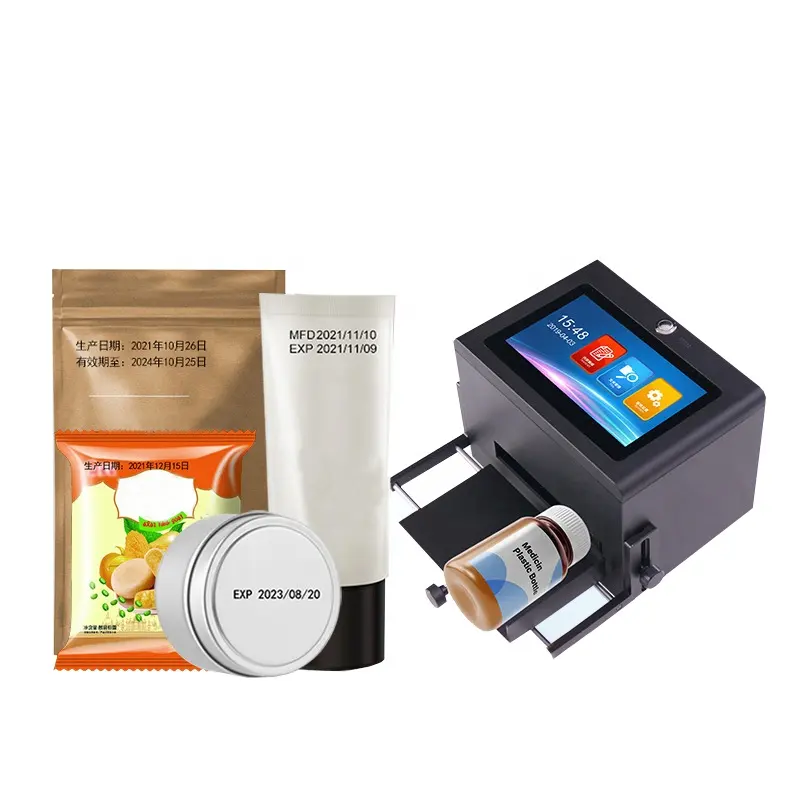

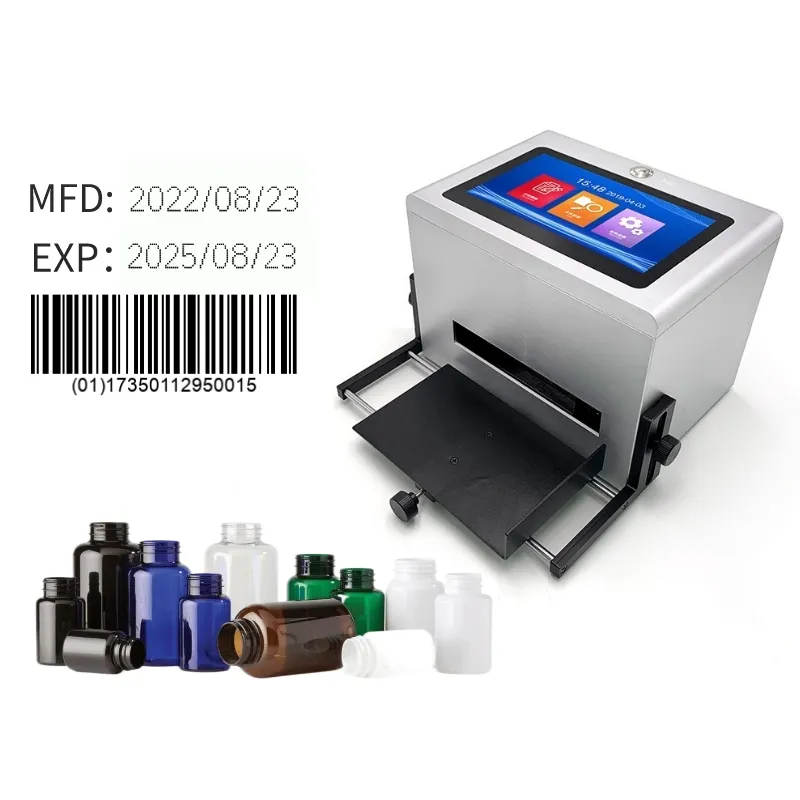

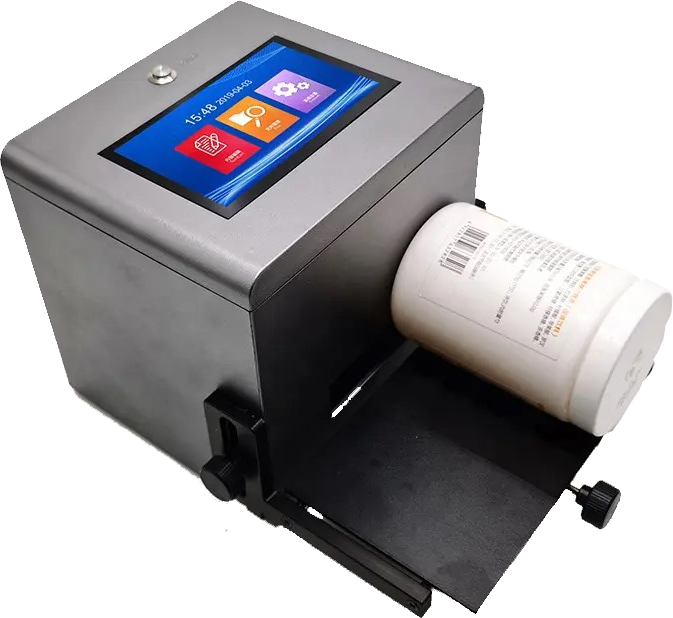

    Standalone Touch Screen Table Top Non-Contact Ink Jet Printer Model IJP – X2 (12.7 mm), which is a Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Bar Codes, etc. on labels, cartons, pouches, containers, etc. Data to be printed can easily be composed on its 5 inch touchscreen. It is table top type(print one by one by hand), suitable for small objects of variety of shapes, offers products shelf to hold the products, select pedal or sensor to trigger print, printing head can be adjust in or out by 3 mm and can print on the bottle neck, bottle side or bottom of bottle.

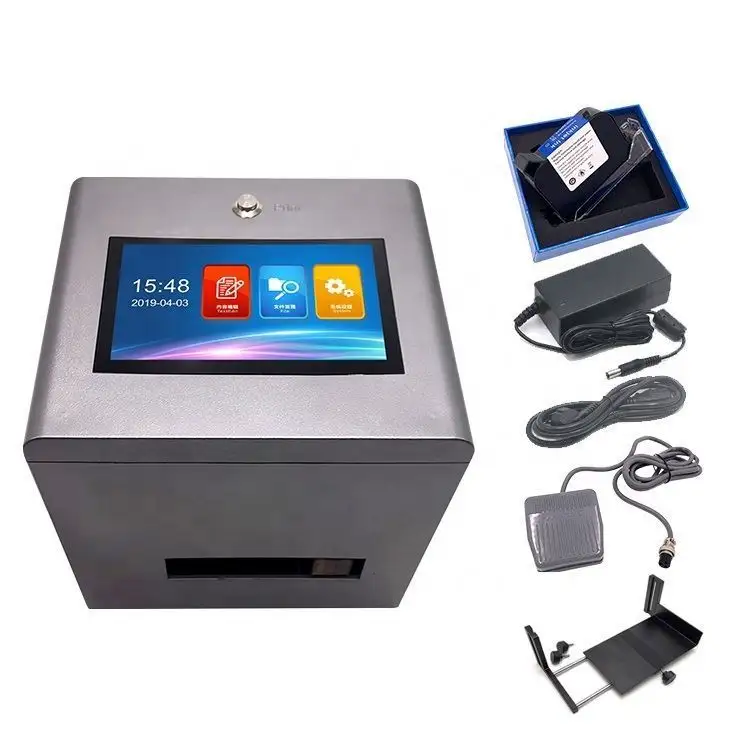

    The system is inclusive of below mentioned accessories worth Rs. 15,000/- free of cost:

    a.  Foot Switch or External Sensor (optional).

    b.  1 No. disposable Pre-mix Black ink cartridge, Cartridge cleaning Wipe.

    d.  Product Bracket, Operation & Maintenance Manual, Instruction Video.

    This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paise per impression (25 char).

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – X2

    Display

    5” full color LCD Touch Screen with LED backlight.

    Languages

    Chinese, Traditional Chinese, English, Korean, etc.

    Input Device

    800 x 480 Touch Screen LCD, Pen Drive.

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR

    Printing Area

    1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.

    Printing Direction

    Adjustable at any angle within 360 degree

    Message Capacity

    Store upto 1,000 messages with Message Name.

    Printing Speed

    Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi

    Prints Using

    Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink

    Print Distance

    Max. 6 mm from substrate down or in front.

    Inking Medium

    42 cc disposable pre-mix ink in Cartridge form with head.

    Printing Medium

    Solvent/Oil based inks (black, white, red, blue, yellow, etc.)

    Ink Drying Time

    Min. 5 seconds on plastics & laminates.

    Impressions

    Appx. 15 Lakh d/m characters of 2 mm per cartridge of ink.

    Operating Range

    10 ~ +38ºC, 10% - 80% RH, non-condensing.

    Supply Voltage

    90 - 240 Vac, 50/60 Hz, 5 W

    Dimensions

    L180 x W144 x D155 mm

    Weight

    3 Kg including cartridge.
