    Detail

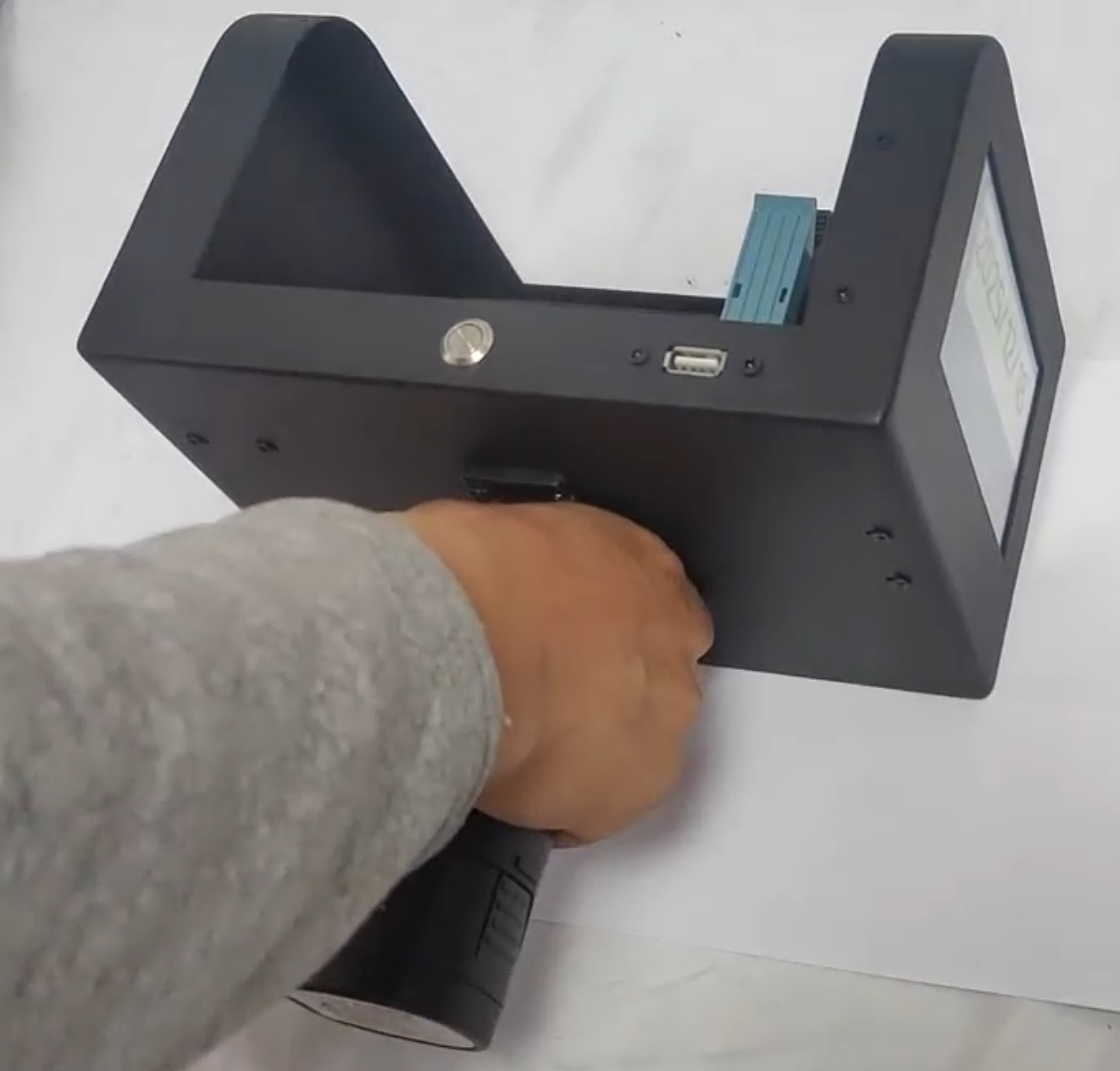

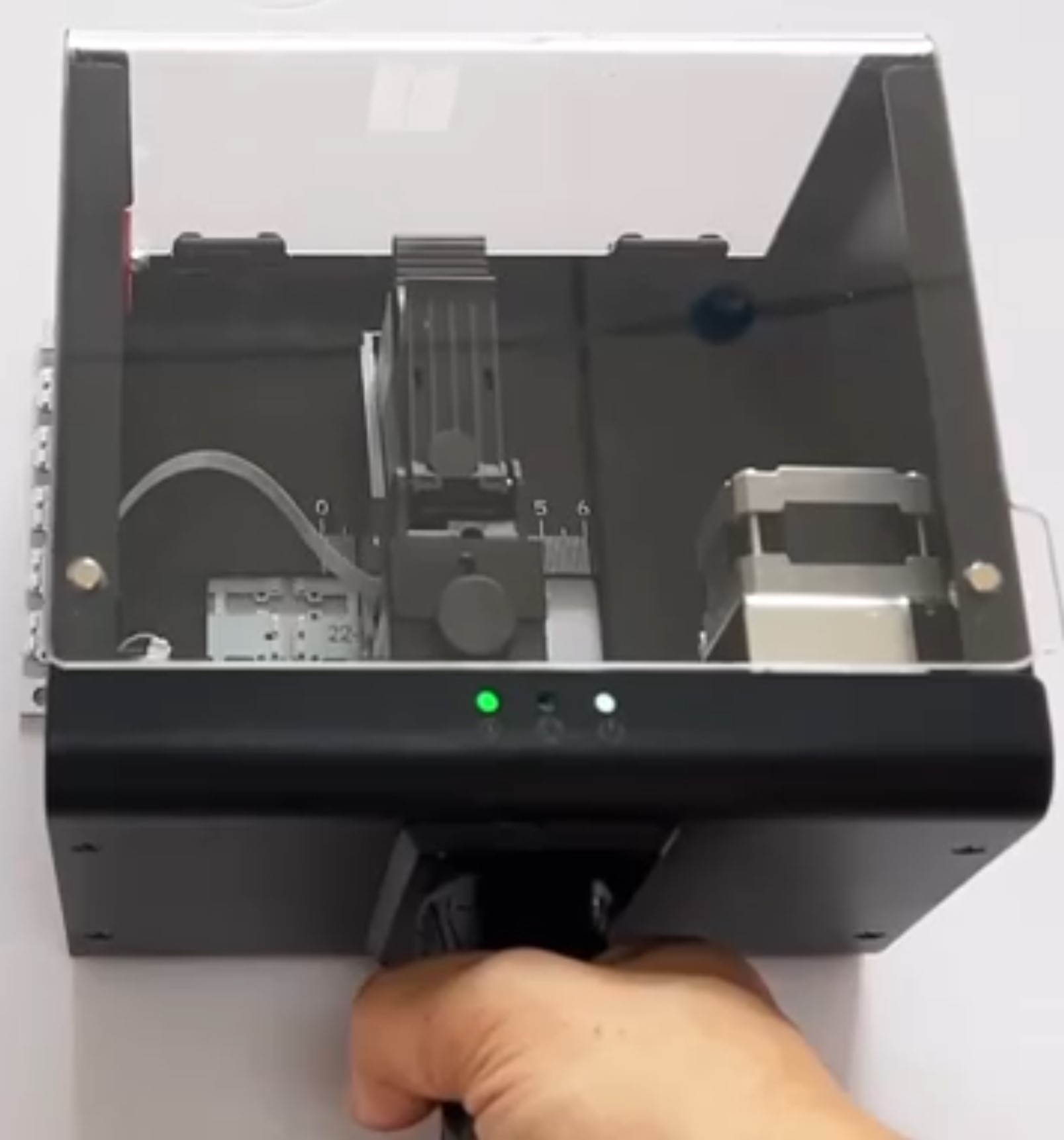

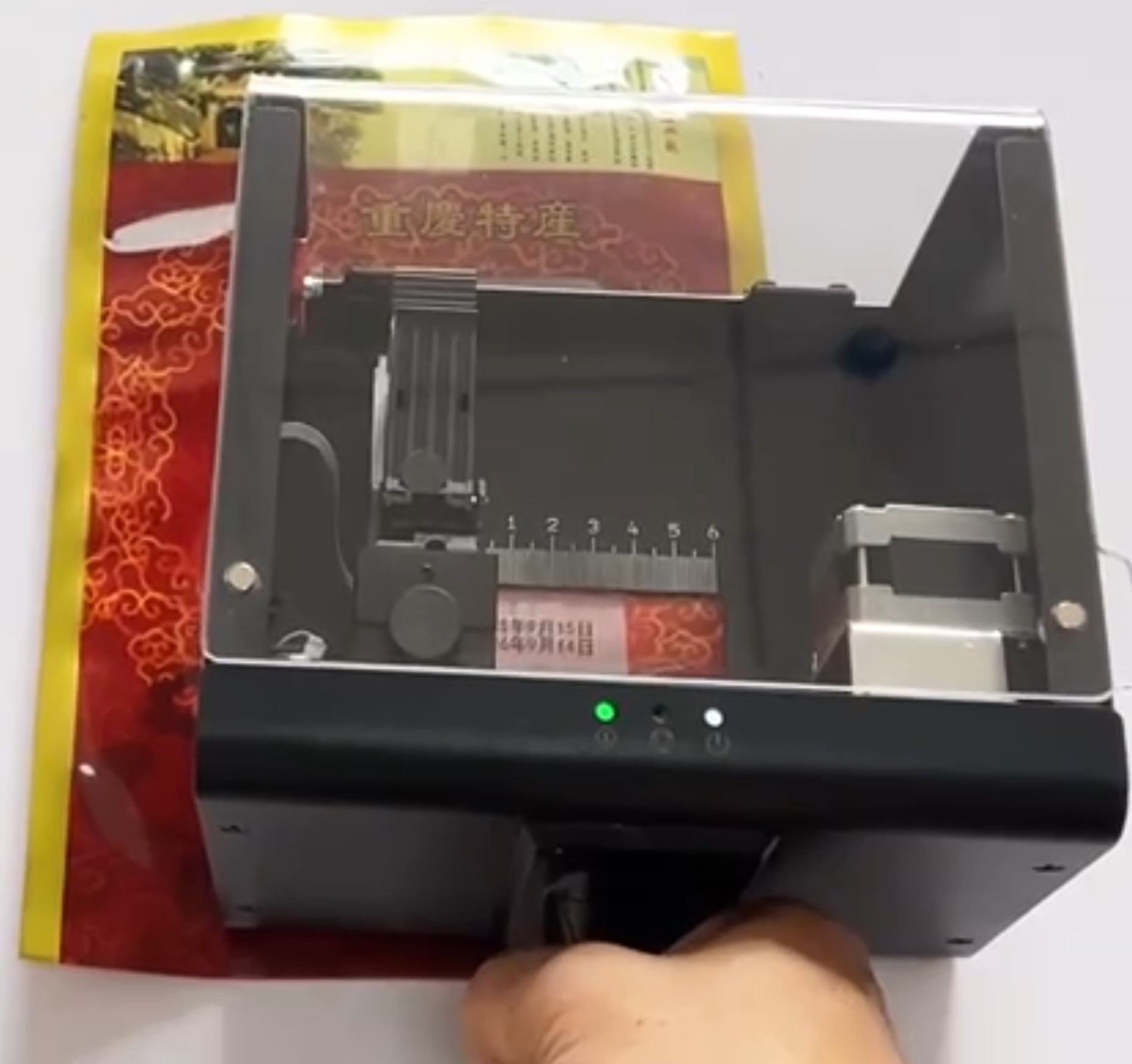

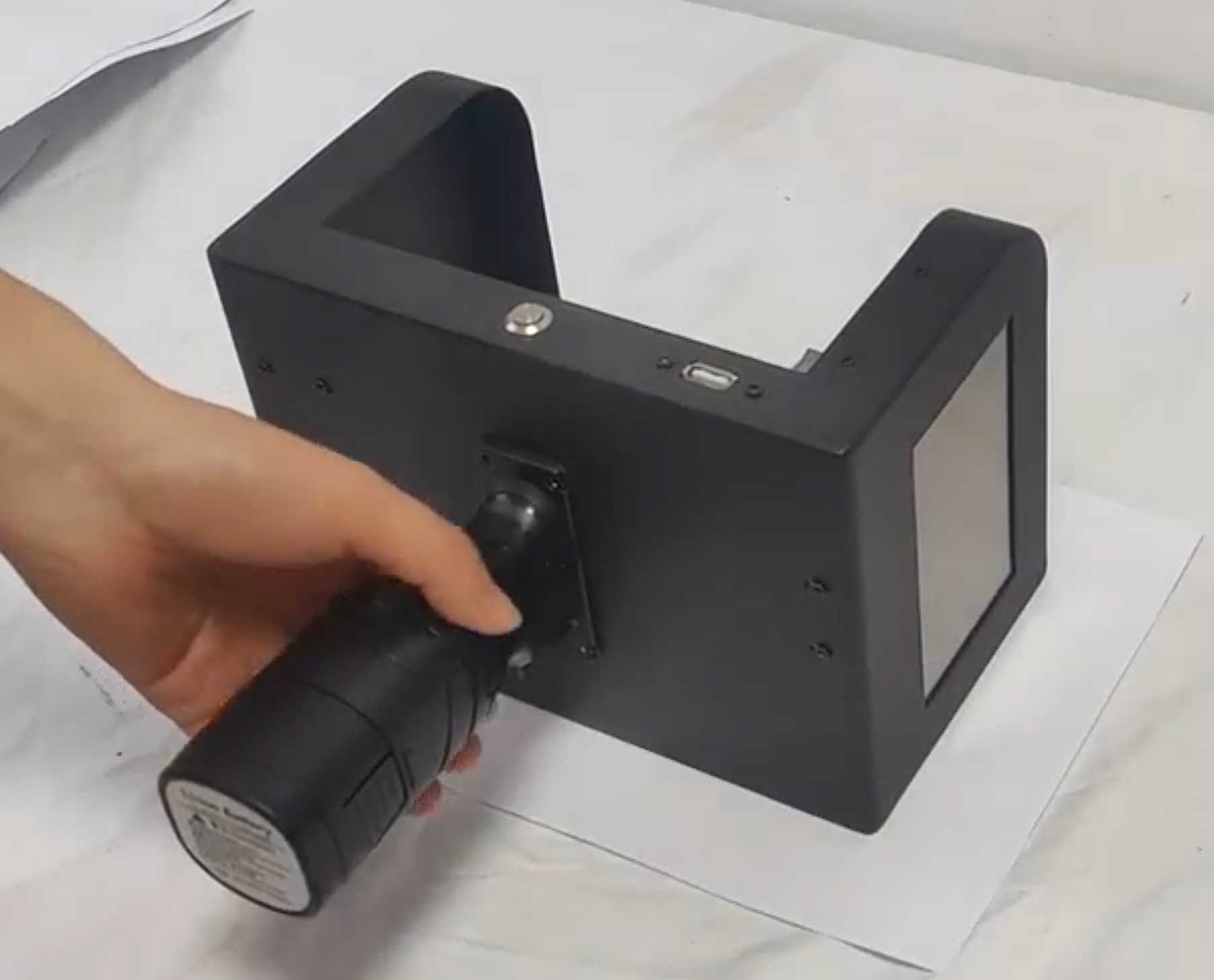

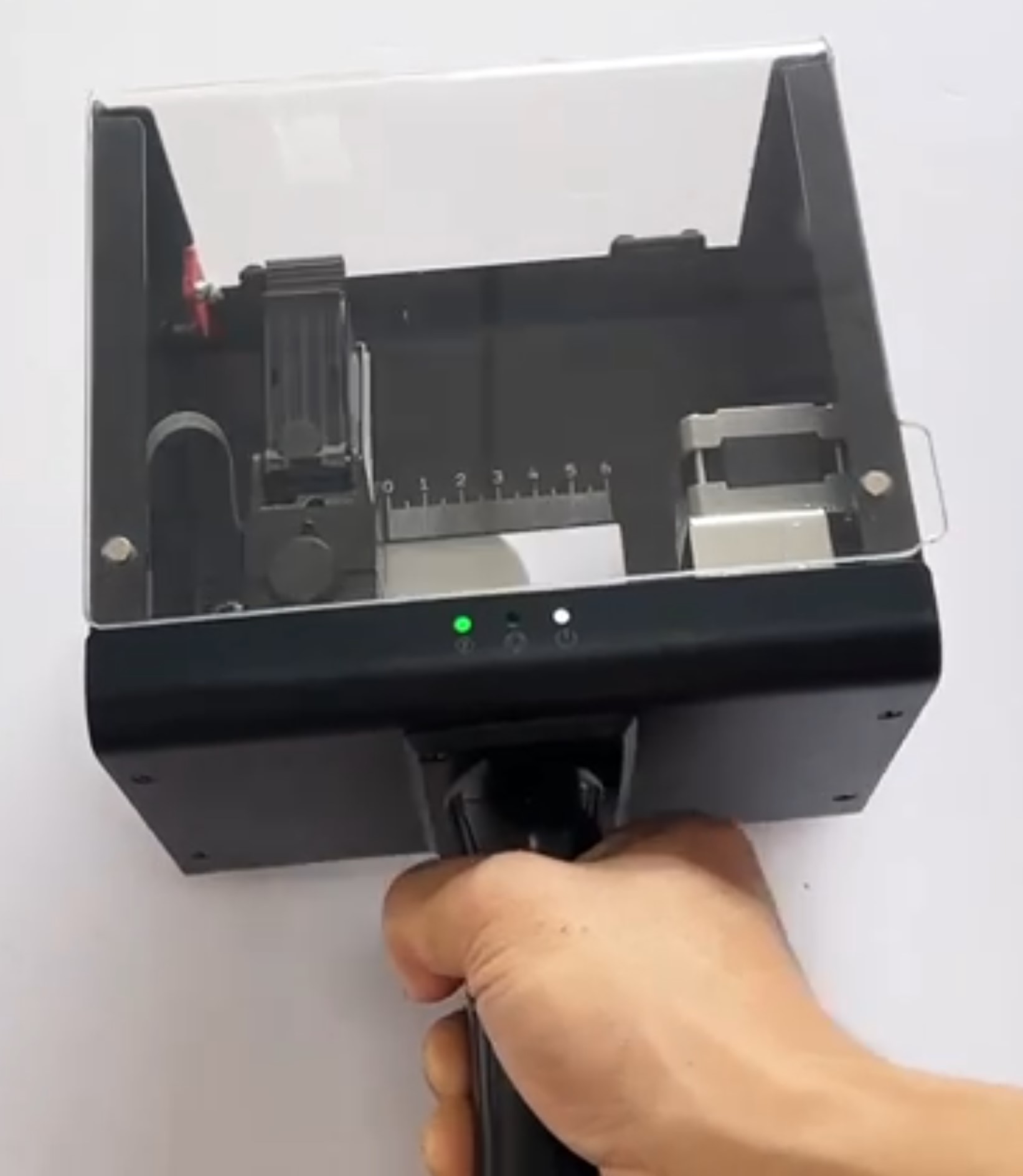

    Standalone Touch Screen Hand Held Auto Non-Contact Ink Jet Printer Model IJP – X3 (12.7 mm), which is a Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Bar Codes, etc. on labels, cartons, pouches, containers, etc. Data to be printed can easily be composed on its 5 inch touchscreen. It is hand held type (print one by one by hand), suitable for small objects of variety of shapes, offers products shelf to hold the products, select pedal or sensor to trigger print, printing head can be adjusted in or out by 3 mm and can print on the bottle neck, bottle side or bottom of bottle.

    Kindly watch Demo Video: https://youtu.be/yUVhA6vSL3M          Download Catalog

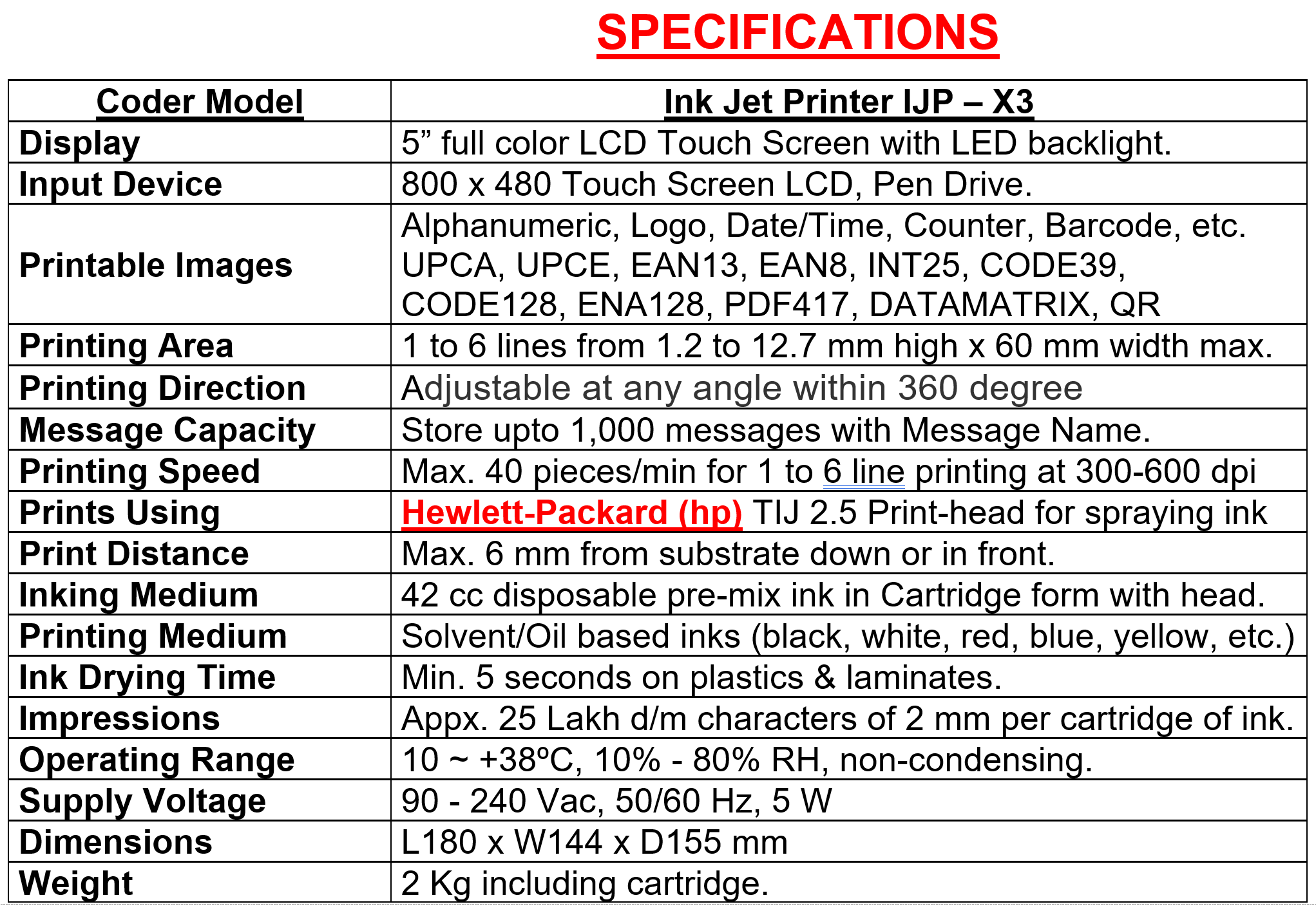

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – X3

    Display

    5” full color LCD Touch Screen with LED backlight.

    Input Device

    800 x 480 Touch Screen LCD, Pen Drive.

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR

    Printing Area

    1 to 6 lines from 1.2 to 12.7 mm high x 60 mm width max.

    Printing Direction

    Adjustable at any angle within 360 degree

    Message Capacity

    Store upto 1,000 messages with Message Name.

    Printing Speed

    Max. 40 pieces/min for 1 to 6 line printing at 300-600 dpi

    Prints Using

    Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink

    Print Distance

    Max. 6 mm from substrate down or in front.

    Inking Medium

    42 cc disposable pre-mix ink in Cartridge form with head.

    Printing Medium

    Solvent/Oil based inks (black, white, red, blue, yellow, etc.)

    Ink Drying Time

    Min. 5 seconds on plastics & laminates.

    Impressions

    Appx. 25 Lakh d/m characters of 2 mm per cartridge of ink.

    Operating Range

    10 ~ +38ºC, 10% - 80% RH, non-condensing.

    Supply Voltage

    90 - 240 Vac, 50/60 Hz, 5 W

    Dimensions

    L180 x W144 x D155 mm

    Weight

    2 Kg including cartridge.
