Detail

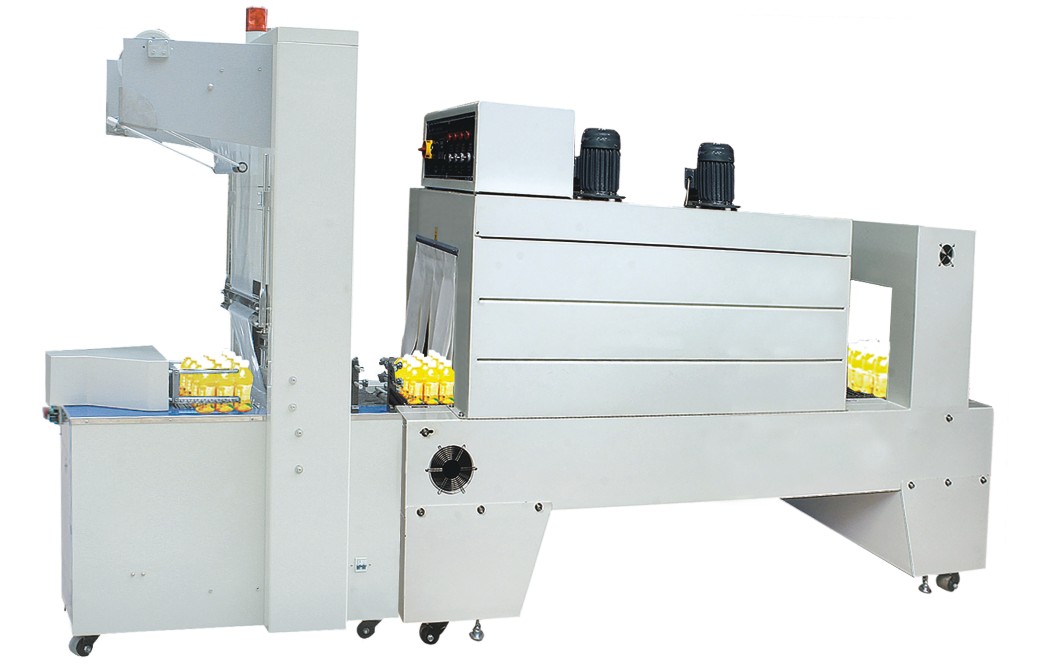

Semi-Auto Shrink Packager Web Sealer Model SWS-5038B for shrink wrapping bottles, jars, cans, etc. in tray or without tray. Up and down magnetic switch prevent sealing mistakes, and protect the operators. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding. Up and down large power fan system ensures the excellent effect of shrinking in one time.
SPECIFICATIONS:
|
Model |
BZJ-5038 (Pneumatic) |
Model |
BSE-5038M |
|
Power supply |
220-240V, 50 Hz;1.8KW |
Power supply |
3phase 380V 50 Hz |
|
Capacity |
2-5pcs/minute |
Heater power |
25KW Adjuster |
|
Sealing time/shrink time |
0.5-1.5s, 0-0.6s |
Conveyer speed |
0-10m/minute |
|
Conveyor loading |
30kg |
Tunnel size(L*W*H) |
1200*500*380mm |
|
Film width |
Max. 500mm |
Conveyer loading |
25Kkg MAX. |
|
Film thickness |
0.04-0.12mm |
Shrink film |
PE,POF,PVC,PP |
|
Max. packing dimension |
450L x 270Wx350H mm |
Machine weight |
250KG |
|
Min. packing dimension |
250L x 60W x 60H mm |
Machine size |
2200*780*1470mm |
