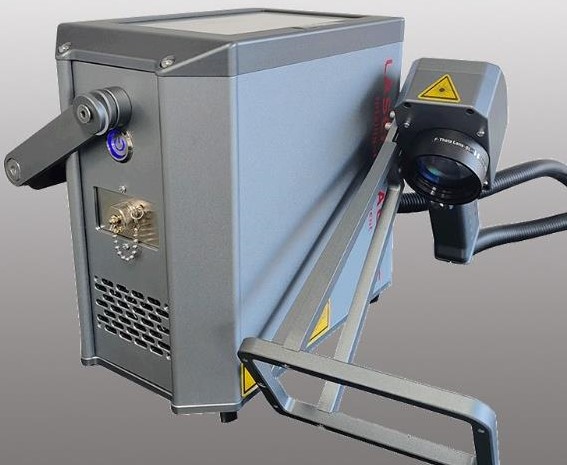

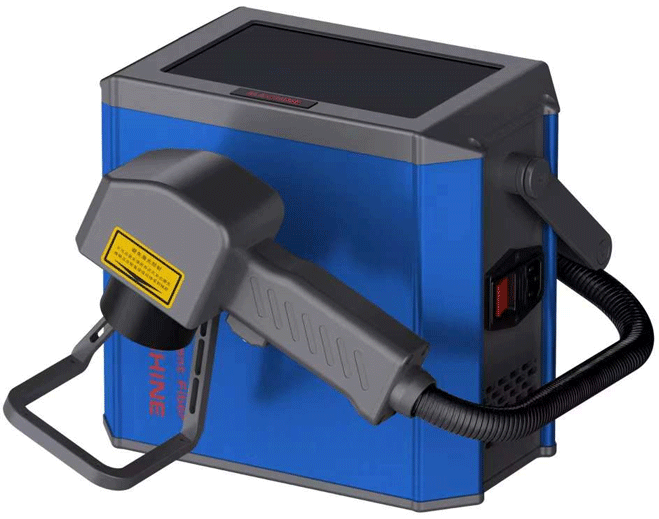

Industrial Portable (Battery Powered*) Handheld Compact 30W Smart Static FiberLaser Printer Model SLP-F30HL1 is a long-term alternative to ink-jet printers. The laser beam is focused onto the surface of the material to be marked with an f-theta lens, which has the property of being able to maintain its focus throughout a plane, rather than focusing on just one spot, steered by a pair of computer-controlled mirrors. That mark can be in the form of graphical images, text, machine-readable codes (i.e. barcodes, UID codes or 2D codes), or any other type of mark imaginable. For jewelry engraving and cutting, it can do some thin cutting for gold or silver within 1mm. It can carry out high-quality laser marking which is clear, effective and cannot be erased (for security). The machine can run continuously 24/7 and is maintenance-free for more than 1,00,000 hours, reducing production costs, using no consumables and improving production efficiency. A fiber laser is a laser where the active medium being used is an optical fiber that has been doped in rare elements. There is some dust and smoke when laser is printing, but not as much as CO2. Marking material can be Metal (copper, aluminum, iron, stainless steel, etc.), Aluminum foil pouches, HDPE / PVC products (pipes, containers, etc.), ABS, etc.
SPECIFICATIONS
Model
SLP-F20HL1 / SLP-F30HL1 (L1/L2)
Work Area (mm)
100×100 or 75x75 (Optionally 120x75)
Laser Power
20 W / 30 W
Laser Repetition Frequency
27 KHz – 60 KHz
Wavelength
1064 ± 5 nm
Beam Quality M2
≤ 1.4
Min Line Width
0.03 mm
Min Character
0.2 mm
Marking Speed
≤ 7000 mm/s (≤ 420 M/min)
Marking Depth
≤ 0.2 mm
Repeat Precision
± 0.002 mm
Positioning System
Double Red Light Focus
Laser Lifetime
More than 30000 hours without failure.
System
Integrated 7” / 8” Touch Screen with Linux Software
Input
Text, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
Cooling way
Built-in air cooling
Battery life*
It can work for 4-6 hours under normal use in one day
System power supply
100-240V / 50/60Hz - 200W
Dimension (mm) / Weight
Control box: 310x260x307mm / 270x155x245, 6 Kg / 7 Kg
Marking head: 220x78x182mm / 240x100x230mm, 1.25 kg / 1.25 Kg
