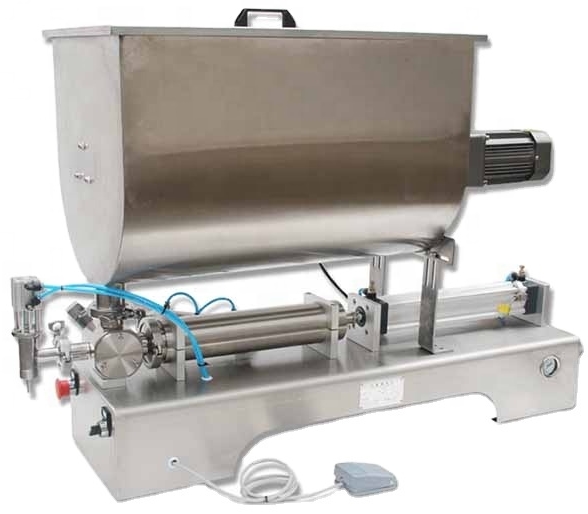

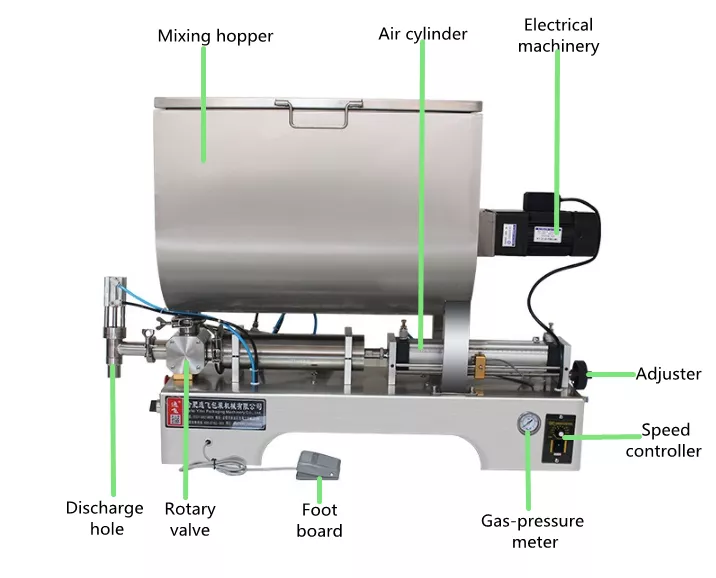

Semi-Automatic Single Head Pneumatic Pickle Filling Machine Model PFM-1000P (1Kg) is perfect for handling products with different viscosities with contact parts made of SS 304 / 316. Driven by a cylinder and piston with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder stroke to regulated filling volume. It possesses clean cut-off for drip free filling, positive displacement type suction as well as delivery stroke. The piston is a specially designed one, which does suction and filling in one stroke. It has quantity adjustment screw for setting the desired volume. Suitable for cream, Mango pulp, Paint, Paste, Chywanprash, Gulkand, Kiwam, Adhesive, Grease, etc.

SPECIFICATIONS:
