    • pro21Model IJP MX2 25.4mm.jpg

    Detail

    AIMS brand (made in Taiwan) Smallest Industrial On-Line Non-Contact Ink Jet Printer Model IJP – MX2 (25.4mm or 12.7mm x 2), which is a Compact design, Zero Maintenance, 300 dpi high resolution, TWELVE line (character height 1 to 25.4 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Variable Bar Codes, etc. on labels, cartons, pouches, bottles, etc. It is fully programmable using the 5 inch full colour Touch Screen LCD with stand-alone operation (no PC required) where it can print 6 lines Data at a very low price.

    The system is inclusive of below mentioned accessories worth Rs. 40,000/- free of cost:

    a.  Complete Printer stand with bracket for Conveyor mounting.

    b.  Computer Software.

    c.  2 Nos. disposable Pre-mix ink cartridge.

    d.  Operator Tool Kit, Operation & Maintenance Manual.

    This printer is fully Electronic &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 7 Paisa per impression (20 char).

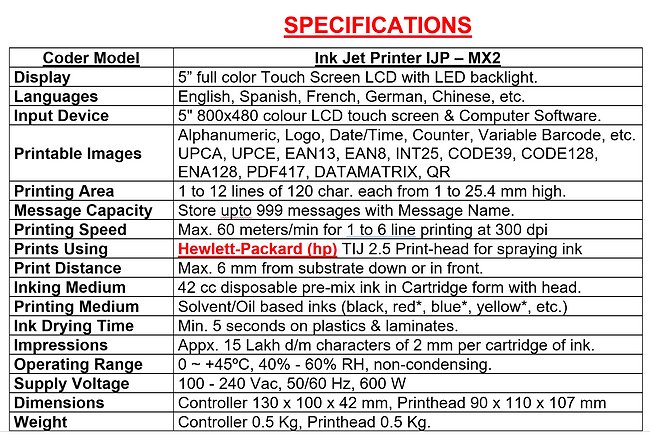

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – MX2

    Display

    5” full color Touch Screen LCD with LED backlight.

    Languages

    English, Spanish, French, German, Chinese, etc.

    Input Device

    5" 800x480 colour LCD touch screen & Computer Software.

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, Variable Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR

    Printing Area

    1 to 12 lines of 120 char. each from 1 to 25.4 mm high.

    Message Capacity

    Store upto 999 messages with Message Name.

    Printing Speed

    Max. 60 meters/min for 1 to 6 line printing at 300 dpi

    Prints Using

    Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink

    Print Distance

    Max. 6 mm from substrate down or in front.

    Inking Medium

    42 cc disposable pre-mix ink in Cartridge form with head.

    Printing Medium

    Solvent/Oil based inks (black, red*, blue*, yellow*, etc.)

    Ink Drying Time

    Min. 5 seconds on plastics & laminates.

    Impressions

    Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink

    Operating Range

    0 ~ +45ºC, 40% - 60% RH, non-condensing.

    Supply Voltage

    100 - 240 Vac, 50/60 Hz, 600 W

    Dimensions

    Controller 130 x 100 x 42 mm, Printhead 90 x 110 x 107 mm

    Weight

    Controller 0.5 Kg, Printhead 0.5 Kg.
