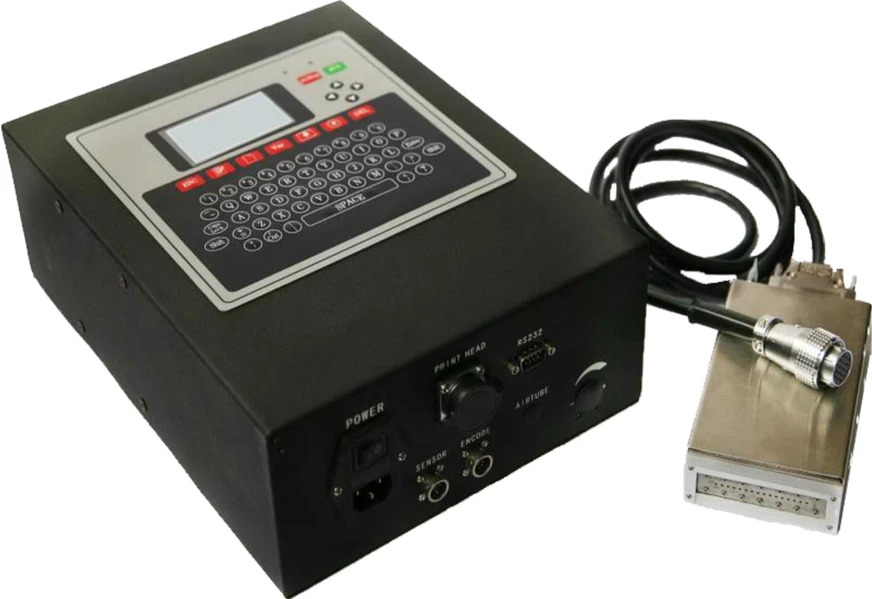

Industrial On-Line Non-Contact Large Character Ink Jet Printer Model IJP – SK2000 (50mm), which is a Zero Maintenance, Mains Powered TWO line (character height 20 to 50 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, etc. on labels, cartons, pouches, drums, containers, etc. It is an ultra-compact and light inkjet printer equipped with a print-head with electromagnetic valves. It has built in keyboard & display where it can print 2 lines Data & all Computer Fonts (local languages) at a very low price.
|

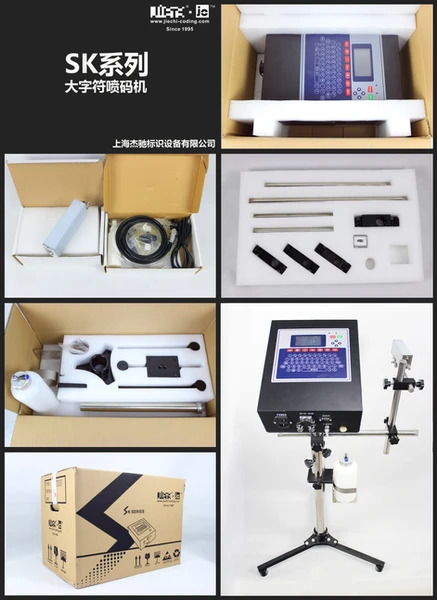

The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost: a. Molded Box with molded slots for printer & accessories. b. Computer Software. c. 1 No. Pre-mix ink cartridge, 1 No. Solvent Cartridge. d. Operator Tool Kit, Operation & Maintenance Manual, Instruction Video CD. |
This printer is fully Electronic &does not have any viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 75 Paisa per impression (20 char).

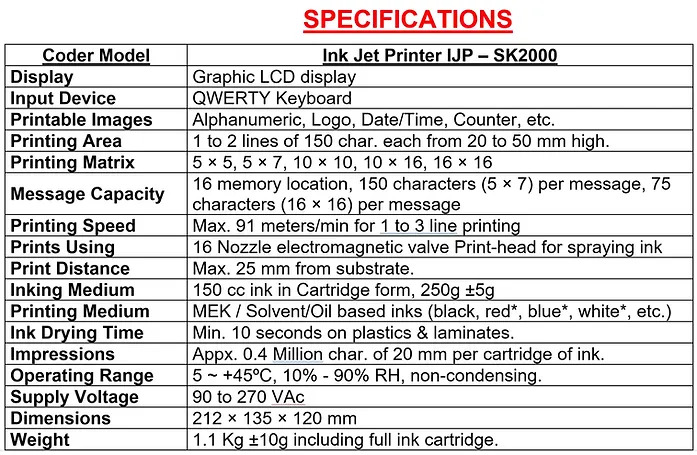

SPECIFICATIONS
|
Coder Model |
Ink Jet Printer IJP – SK2000 |
|
Display |
Graphic LCD display |
|
Input Device |
QWERTY Keyboard |
|
Printable Images |
Alphanumeric, Logo, Date/Time, Counter, etc. |
|
Printing Area |
1 to 2 lines of 150 char. each from 20 to 50 mm high. |
|
Printing Matrix |
5 × 5, 5 × 7, 10 × 10, 10 × 16, 16 × 16 |
|
Message Capacity |
16 memory location, 150 characters (5 × 7) per message, 75 characters (16 × 16) per message |
|
Printing Speed |
Max. 91 meters/min for 1 to 3 line printing |
|
Prints Using |
16 Nozzle electromagnetic valve Print-head for spraying ink |
|
Print Distance |
Max. 25 mm from substrate. |
|
Inking Medium |
150 cc ink in Cartridge form, 250g ±5g |
|
Printing Medium |
MEK / Solvent/Oil based inks (black, red*, blue*, white*, etc.) |
|
Ink Drying Time |
Min. 10 seconds on plastics & laminates. |
|
Impressions |
Appx. 0.4 Million char. of 20 mm per cartridge of ink. |
|
Operating Range |
5 ~ +45ºC, 10% - 90% RH, non-condensing. |
|
Supply Voltage |
90 to 270 VAc |
|
Dimensions |
212 × 135 × 120 mm |
|
Weight |
1.1 Kg ±10g including full ink cartridge. |
