Industrial On-Line Non-Contact Large Character Ink Jet Printer Model IJP – CL7 (50mm), which is a Zero Maintenance, Mains Powered TWO line (character height 20 to 50 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, etc. on labels, cartons, pouches, drums, containers, etc. It is an ultra-compact and light inkjet printer equipped with a print-head with electromagnetic valves. It has built in keyboard & display where it can print 2 lines Data & all Computer Fonts (local languages) at a very low price. It can also be used by Hand for Manual Printing (with accessories).
|
The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost: a. Molded Box with molded slots for printer & accessories. b. 1 No. Pre-mix ink bottle – 1 Lit., 1 No. Solvent Bottle – 1 Lit. c. Operator Tool Kit, Operation & Maintenance Manual. |
This printer is fully Electronic &does not have any viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 33 Paisa per impression (20 char of 50 mm height).

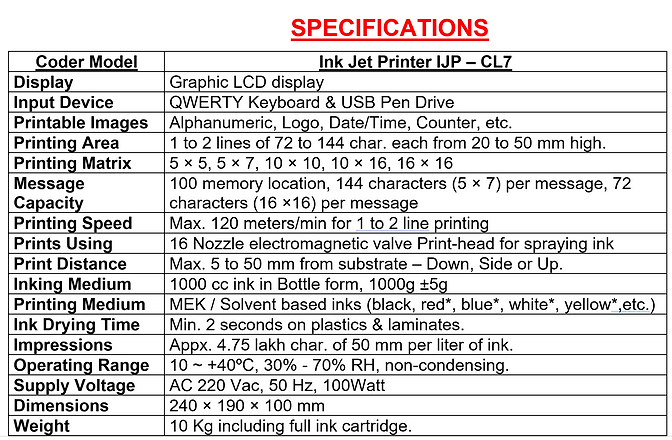

SPECIFICATIONS
|
Coder Model |
Ink Jet Printer IJP – CL7 |
|
Display |
Graphic LCD display |
|
Input Device |
QWERTY Keyboard & USB Pen Drive |
|
Printable Images |
Alphanumeric, Logo, Date/Time, Counter, etc. |
|
Printing Area |
1 to 2 lines of 72 to 144 char. each from 20 to 50 mm high. |
|

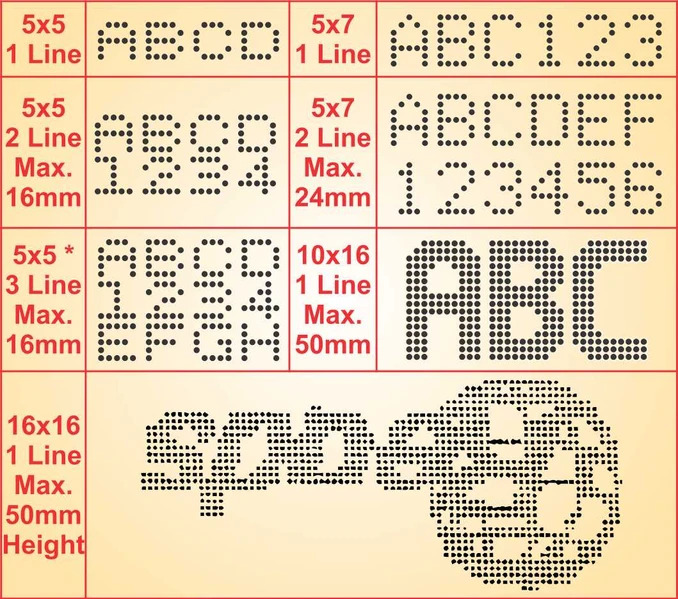

Printing Matrix |
5 × 5, 5 × 7, 10 × 10, 10 × 16, 16 × 16 |
|
Message Capacity |
100 memory location, 144 characters (5 × 7) per message, 72 characters (16 ×16) per message |
|
Printing Speed |
Max. 120 meters/min for 1 to 2 line printing |
|
Prints Using |
16 Nozzle electromagnetic valve Print-head for spraying ink |
|
Print Distance |
Max. 5 to 50 mm from substrate – Down, Side or Up. |
|
Inking Medium |
1000 cc ink in Bottle form, 1000g ±5g |
|
Printing Medium |
MEK / Solvent based inks (black, red*, blue*, white*, yellow*,etc.) |
|
Ink Drying Time |
Min. 2 seconds on plastics & laminates. |
|
Impressions |
Appx. 4.75 lakh char. of 50 mm per liter of ink. |
|
Operating Range |
10 ~ +40ºC, 30% - 70% RH, non-condensing. |
|
Supply Voltage |
AC 220 Vac, 50 Hz, 100Watt |
|
Dimensions |
240 × 190 × 100 mm |
|
Weight |
10 Kg including full ink cartridge. |
