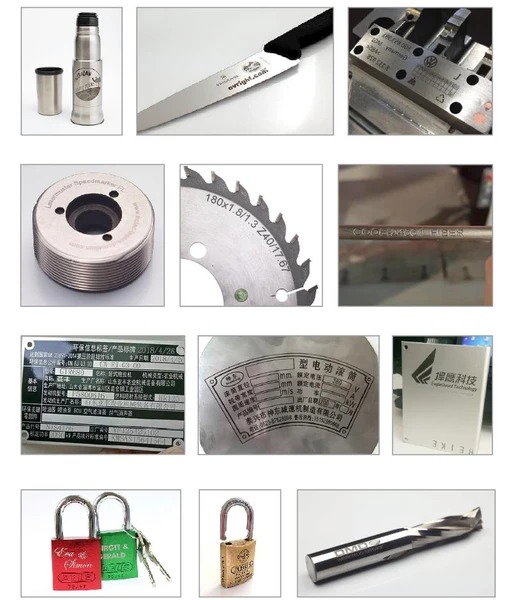

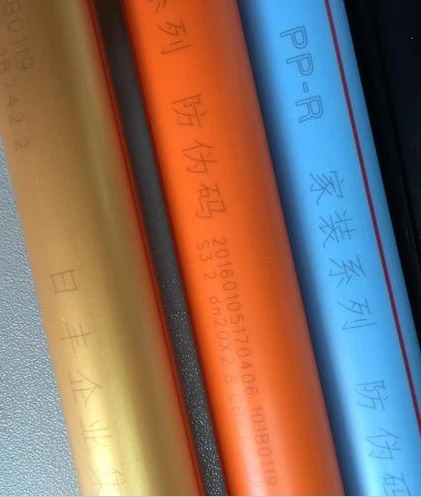

Industrial On-Line / Off-Line 20W Smart Flying FiberLaser Printer Model SLP-F20-O is a long-term alternative to ink-jet printers. It has a dynamic control system which is equipped with software and hardware which tracks the fast-moving workpiece for marking on the production line without stopping. The system can be integrated with various types of production lines to carry out high-quality laser marking which is clear, effective and cannot be erased (for security). The machine can run continuously 24/7 and is maintenance-free for more than 1,00,000 hours, reducing production costs, using no consumables and improving production efficiency. A fiber laser is a laser where the active medium being used is an optical fiber that has been doped in rare elements. There is some dust and smoke when laser is printing, but not as much as CO2. High production speed requires higher laser power. Marking material can be Metal (copper, aluminum, iron, stainless steel, etc.), Aluminum foil pouches / film roll, HDPE / PVC products (pipes, cables, containers, etc.), ABS, etc.
SPECIFICATIONS
Model
SLP-F20-O / SLP-F30-O / SLP-F50-O
Work Area (mm)
110 × 110 (Optionally 200 × 200, 300 × 300)
Laser Power
20 / 30 / 50 W
Laser Repetition Frequency
20 KHz – 80 KHz
Wavelength
1064 ± 10 nm
Beam Quality M2
< 2
Min Line Width
0.012 mm
Min Character
0.15 mm
Marking Speed
≤ 7000 mm/s (≤ 420 M/min)
Marking Depth
≤ 0.5 / 0.7 mm
Repeat Precision
± 0.002 mm
Positioning System
Double Red Light Focus
Laser Lifetime
More than 100000 hours without failure.
Input
Text, Graphics, Variable Bar Code, Serial No. (Meter Marking), Date, TXT file, RS232 (TCP/IP), etc.
