Detail

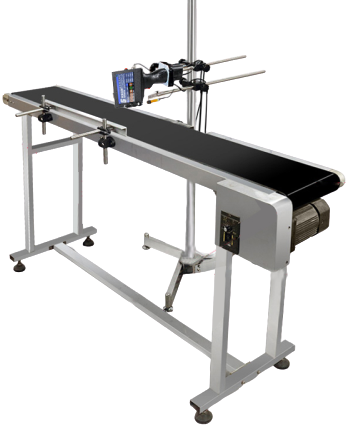

AIMS brand (made in India) Best Quality Large Character Industrial Handheld Non-Contact Ink Jet Printer Model IJP – M3S-MAX (50mm), which is a 4-in-1 Compact design, Zero Maintenance, 300-600 dpi high resolution, Mains/ Battery Powered TWENTY line (character height 1.2 to 50 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It is fully programmable using the 5-inch full color Touch Screen LCD or with input from USB Pen Drive and is also capable of printing Multi-Segment / Grouped messages. It can also be mounted on conveyor / stand for On-Line Printing.
|

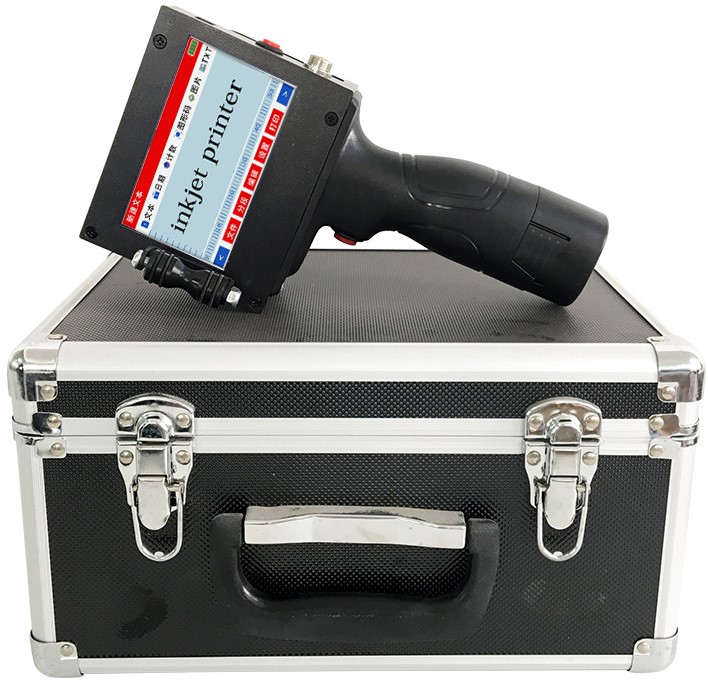

The system is inclusive of below mentioned accessories worth Rs. 35,000/- free of cost: a. Hard Aluminum Carry Case with molded slots for printer & accessories. b. 1 No. 2600 mAh Rechargeable Batteries. c. 2 Nos. disposable Pre-mix Black ink cartridge. d. Operator Tool Kit, Operation & Maintenance Manual. |
This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paise per impression (25 char).

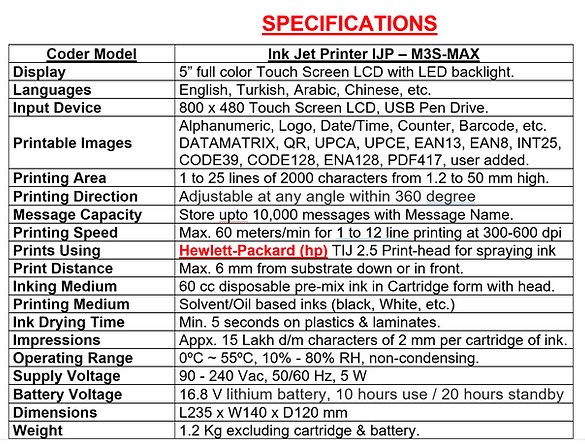

SPECIFICATIONS
|
Coder Model |
Ink Jet Printer IJP – M3S-MAX |
|
Display |
5” full color Touch Screen LCD with LED backlight. |
|
Languages |
English, Turkish, Arabic, Chinese, etc. |
|
Input Device |
800 x 480 Touch Screen LCD, USB Pen Drive. |
|
Printable Images |
Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. DATAMATRIX, QR, UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, user added. |
|
Printing Area |
1 to 25 lines of 2000 characters from 1.2 to 50 mm high. |
|
Printing Direction |
Adjustable at any angle within 360 degree |
|
Message Capacity |
Store upto 10,000 messages with Message Name. |
|
Printing Speed |
Max. 60 meters/min for 1 to 12 line printing at 300-600 dpi |
|
Prints Using |
Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink |
|
Print Distance |
Max. 6 mm from substrate down or in front. |
|
Inking Medium |
60 cc disposable pre-mix ink in Cartridge form with head. |
|
Printing Medium |
Solvent/Oil based inks (black, White, etc.) |
|
Ink Drying Time |
Min. 5 seconds on plastics & laminates. |
|
Impressions |
Appx. 30 Lakh dot matrix char. of 2 mm per cartridge of ink |
|
Operating Range |
0ºC ~ 55ºC, 10% - 80% RH, non-condensing. |
|
Supply Voltage |
90 - 240 Vac, 50/60 Hz, 5 W |
|
Battery Voltage |
16.8 V lithium battery, 10 hours use / 20 hours standby |
|
Dimensions |
L235 x W140 x D120 mm |
|
Weight |
1.2 Kg excluding cartridge & battery. |
