    • pro18Model IJP M10 63mm.jpg

    Detail

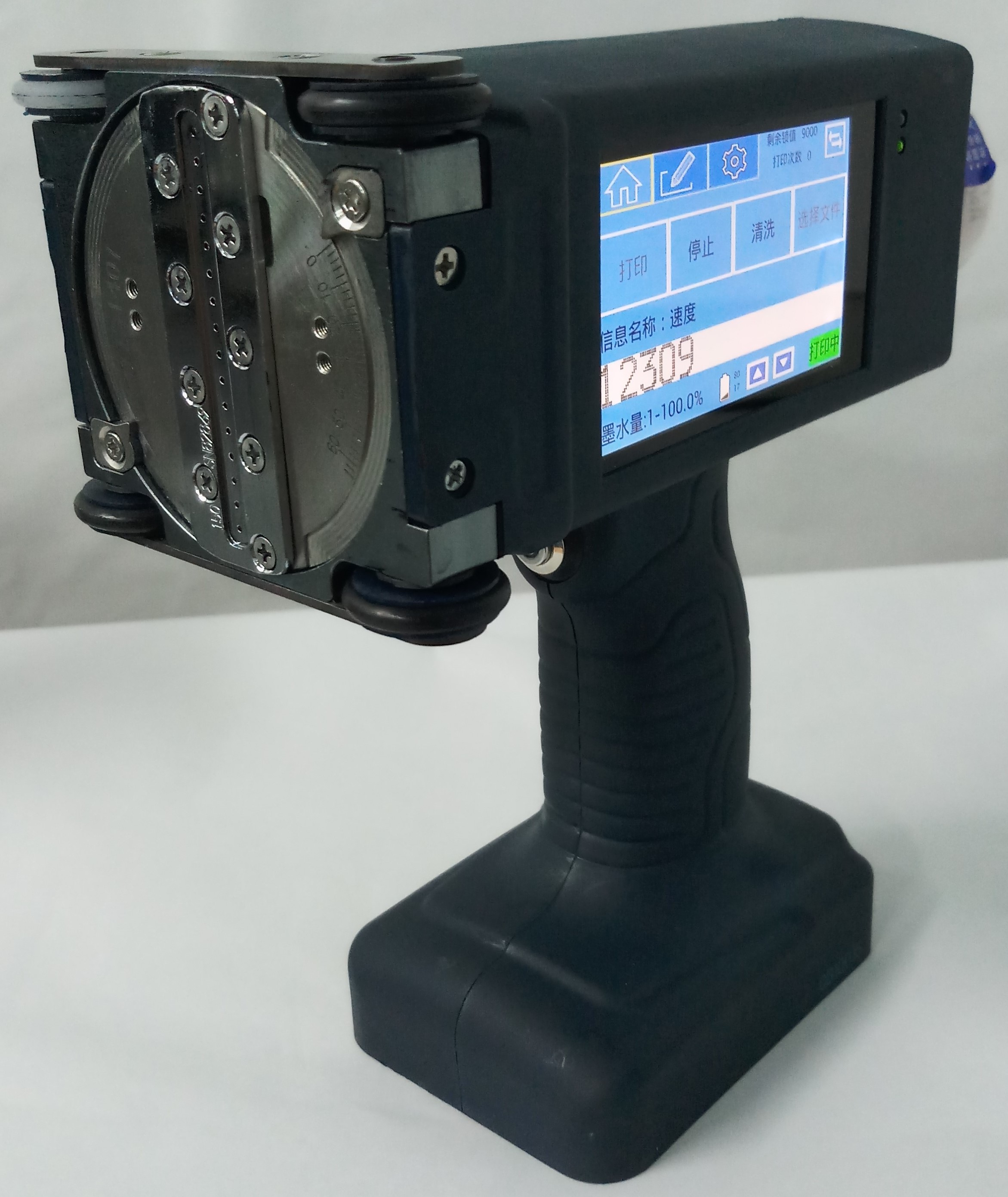

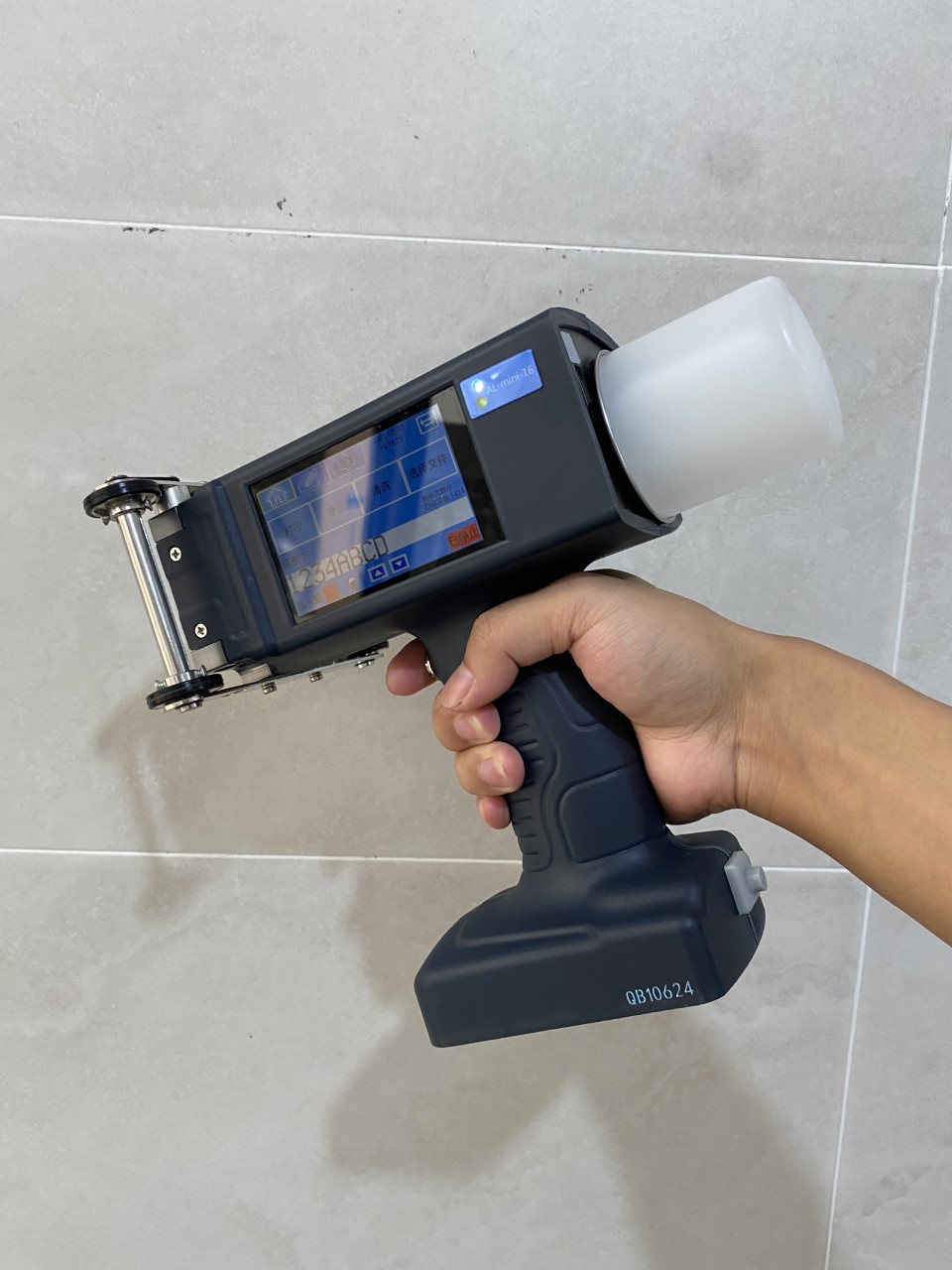

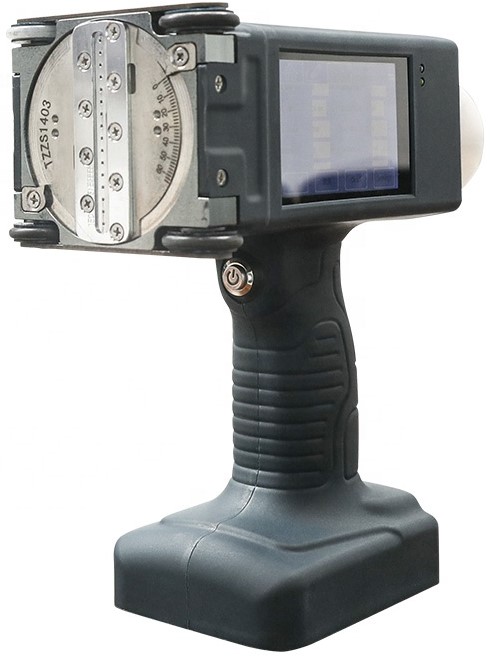

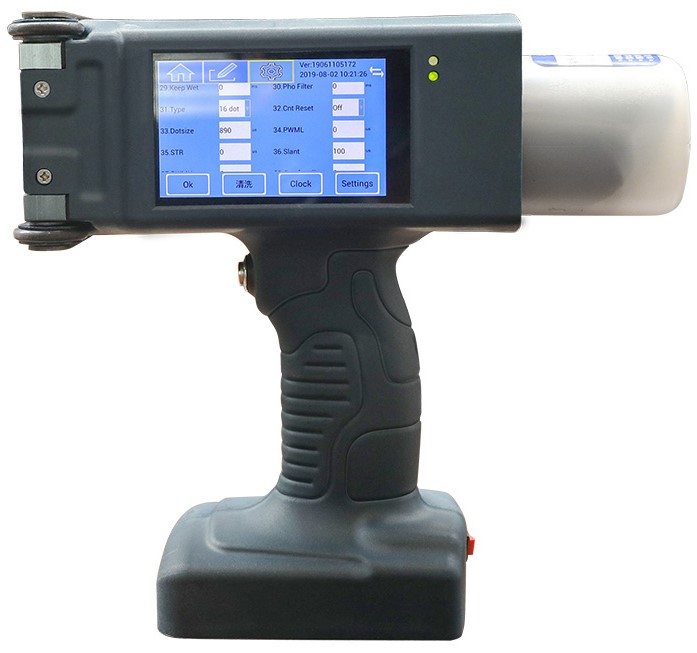

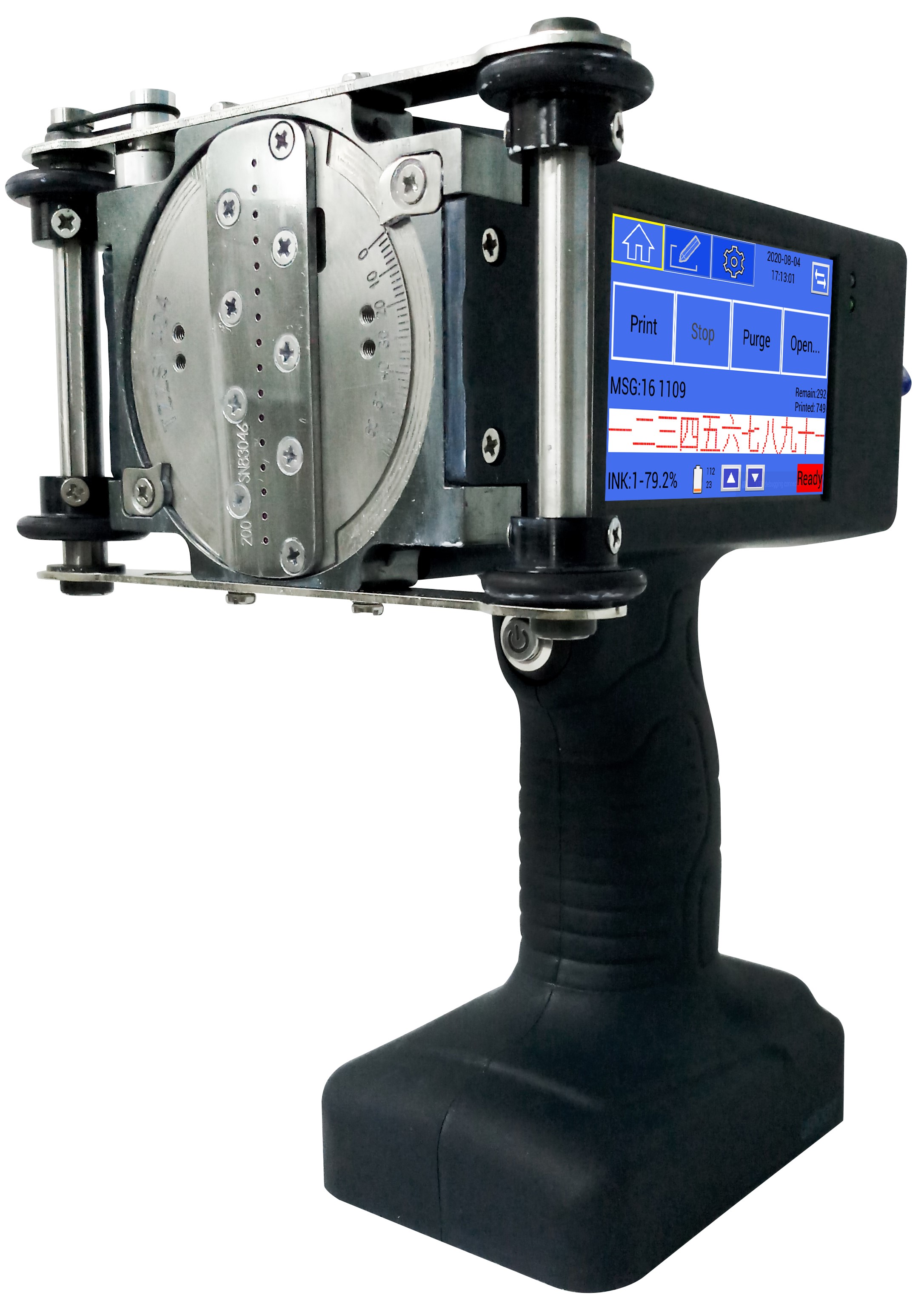

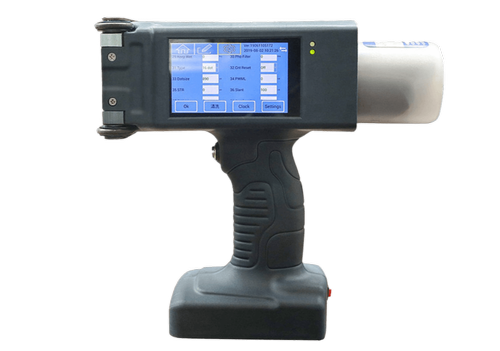

    Industrial Handheld Non-Contact Large Character Ink Jet Printer Model IJP – M10 (63mm), which is a Zero Maintenance, Battery Powered TWO line (character height 25 to 63 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, etc. on labels, cartons, bags, drums, containers, etc. It is an ultra-compact portable and light inkjet printer equipped with a print-head with electromagnetic valves. It is battery operated and WiFi controlled & is fully programmable through its Touch Screen or PC with user-friendly software where it can print 2 lines Data at a very low price. It is also capable of printing Multi-Segment / Grouped messages upto 6 lines.

    The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost:

    a.  Molded Carry Case with molded slots for printer & accessories.

    b.  Rechargeable Batteries.

    c.  1 No. Pre-mix Black ink cartridge, 1 No. Solvent Cartridge.

    d.  Operator Tool Kit, Operation & Maintenance Manual, Instructions.

    This printer is fully Electronic &does not have any viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 75 Paisa per impression (20 char).

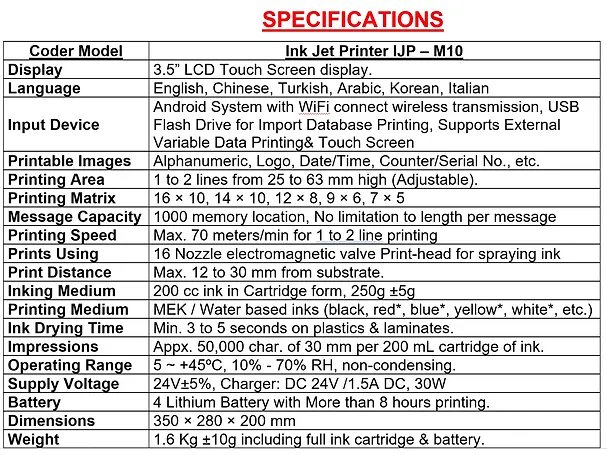

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – M10

    Display

    3.5” LCD Touch Screen display.

    Language

    English, Chinese, Turkish, Arabic, Korean, Italian

    Input Device

    Android System with WiFi connect wireless transmission, USB Flash Drive for Import Database Printing, Supports External Variable Data Printing& Touch Screen

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter/Serial No., etc.

    Printing Area

    1 to 2 lines from 25 to 63 mm high (Adjustable).

    Printing Matrix

    16 × 10, 14 × 10, 12 × 8, 9 × 6, 7 × 5

    Message Capacity

    1000 memory location, No limitation to length per message

    Printing Speed

    Max. 70 meters/min for 1 to 2 line printing

    Prints Using

    16 Nozzle electromagnetic valve Print-head for spraying ink

    Print Distance

    Max. 12 to 30 mm from substrate.

    Inking Medium

    200 cc ink in Cartridge form, 250g ±5g

    Printing Medium

    MEK / Water based inks (black, red*, blue*, yellow*, white*, etc.)

    Ink Drying Time

    Min. 3 to 5 seconds on plastics & laminates.

    Impressions

    Appx. 50,000 char. of 30 mm per 200 mL cartridge of ink.

    Operating Range

    5 ~ +45ºC, 10% - 70% RH, non-condensing.

    Supply Voltage

    24V±5%, Charger: DC 24V /1.5A DC, 30W

    Battery

    4 Lithium Battery with More than 8 hours printing.

    Dimensions

    350 × 280 × 200 mm

    Weight

    1.6 Kg ±10g including full ink cartridge & battery.
