    • pro16Model IJP 480H 72mm.jpg

    Detail

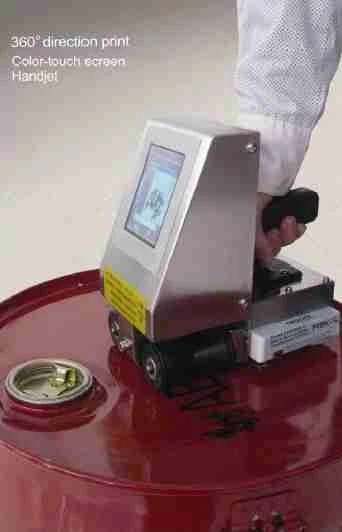

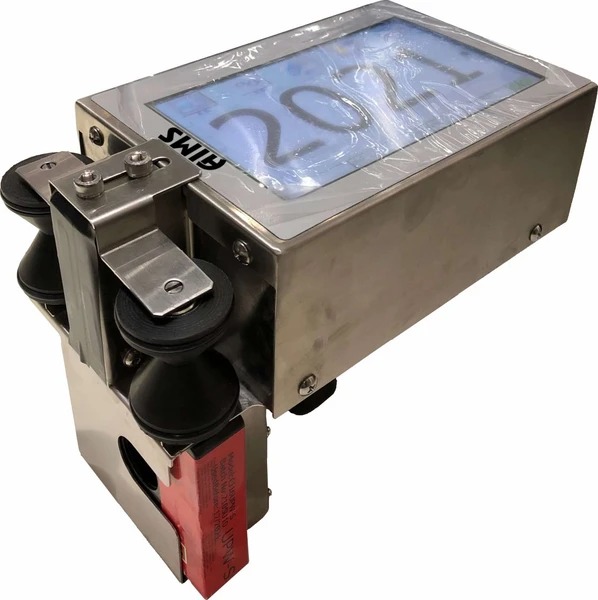

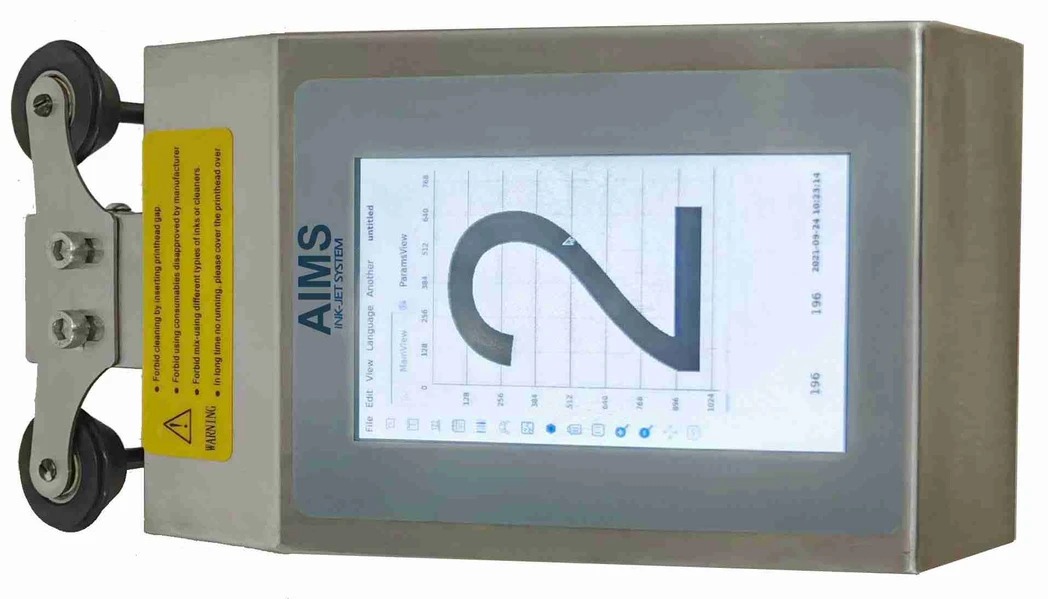

    Industrial Handheld Non-Contact Large Character Ink Jet Printer Model IJP – 480H (72mm), which is a Compact design, Zero Maintenance, 185 dpi high resolution, Battery Powered TWENTY line (character height 1 to 72 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable Variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It is fully programmable using the 5-inch full color Touch Screen LCD with stand-alone operation (no PC required) where it can print 20 lines Data at a very low price. It is also capable of printing Multi-Segment / Grouped messages.

    Additional cost for Heater & Hand Held UV Curing LED unit for above printers using UV Curable Ink which is permanent. +`  59,000/-

    The system is inclusive of below mentioned accessories worth Rs. 30,000/- free of cost:

    a.  Hard Aluminum Carry Case with molded slots for printer & accessories.

    b.  1 No. 2200 mAh Rechargeable Batteries, Charger, Computer Software.

    c.  1 No. disposable Pre-mix ink cartridge, 1 No. Cleaning Cartridge.

    d.  Operator Tool Kit, Touch Pen, Operation & Maintenance Manual, Instruction Video.

    This printer is fully Electronic without CORE system & does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 4 Paise per impression (25 char). Due to the heated UV Inks used, the Printhead might need to be replaced every 6 months to 2 years.

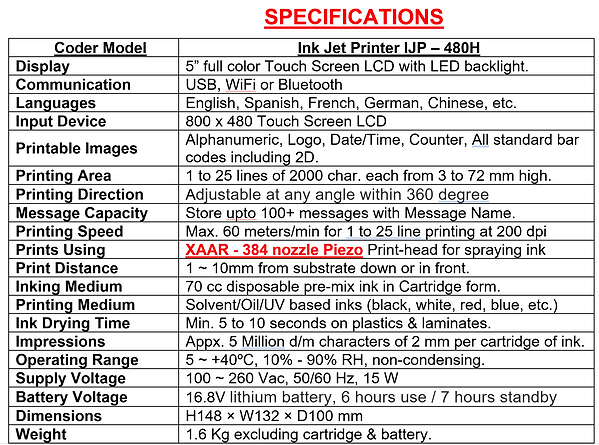

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – 480H

    Display

    5” full color Touch Screen LCD with LED backlight.

    Communication

    USB, WiFi or Bluetooth

    Languages

    English, Spanish, French, German, Chinese, etc.

    Input Device

    800 x 480 Touch Screen LCD

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, All standard bar codes including 2D.

    Printing Area

    1 to 25 lines of 2000 char. each from 3 to 72 mm high.

    Printing Direction

    Adjustable at any angle within 360 degree

    Message Capacity

    Store upto 100+ messages with Message Name.

    Printing Speed

    Max. 60 meters/min for 1 to 25 line printing at 200 dpi

    Prints Using

    XAAR - 384 nozzle Piezo Print-head for spraying ink

    Print Distance

    1 ~ 10mm from substrate down or in front.

    Inking Medium

    70 cc disposable pre-mix ink in Cartridge form.

    Printing Medium

    Solvent/Oil/UV based inks (black, white, red, blue, etc.)

    Ink Drying Time

    Min. 5 to 10 seconds on plastics & laminates.

    Impressions

    Appx. 50 Lakh dot-matrix characters of 2 mm per cartridge of ink.

    Operating Range

    5 ~ +40ºC, 10% - 90% RH, non-condensing.

    Supply Voltage

    100 ~ 260 Vac, 50/60 Hz, 15 W

    Battery Voltage

    16.8V lithium battery, 6 hours use / 7 hours standby

    Dimensions

    H148 × W132 × D100 mm

    Weight

    1.6 Kg excluding cartridge & battery.
