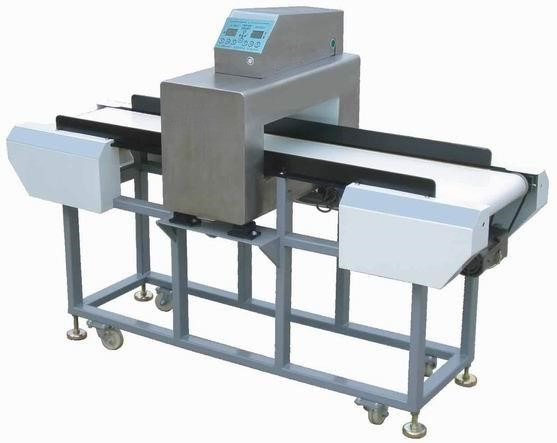

    Fully Automatic Analog Metal Detector Machine Model MDM – 100A Conveyorized Metal Detector having an Aperture size of 200 mm Width and 100 mm Height, designed to detect metal contamination of 0.8 mm Ferrous, 1.0 mm Non-Ferrous 1.2 mm Metals & above. The material or packages to be inspected will pass through the Detector’s aperture where it creates a high frequency electromagnetic field. Presence of foreign metallic particles causes a reaction in this field, which is sensed by the Detector, and the signal is amplified as required. The signal output is in the form of relay contacts which can be used to stop a conveyor, sound an alarm, and actuate a marking system or any other device or combination of devices.

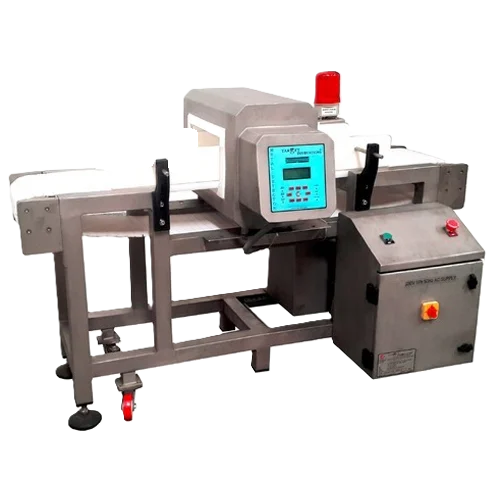

    Same machine as above with Digital Controls Model MDM – 100D

    Kindly watch Demo Video: https://youtu.be/vImryTJE5eY Download Catalog

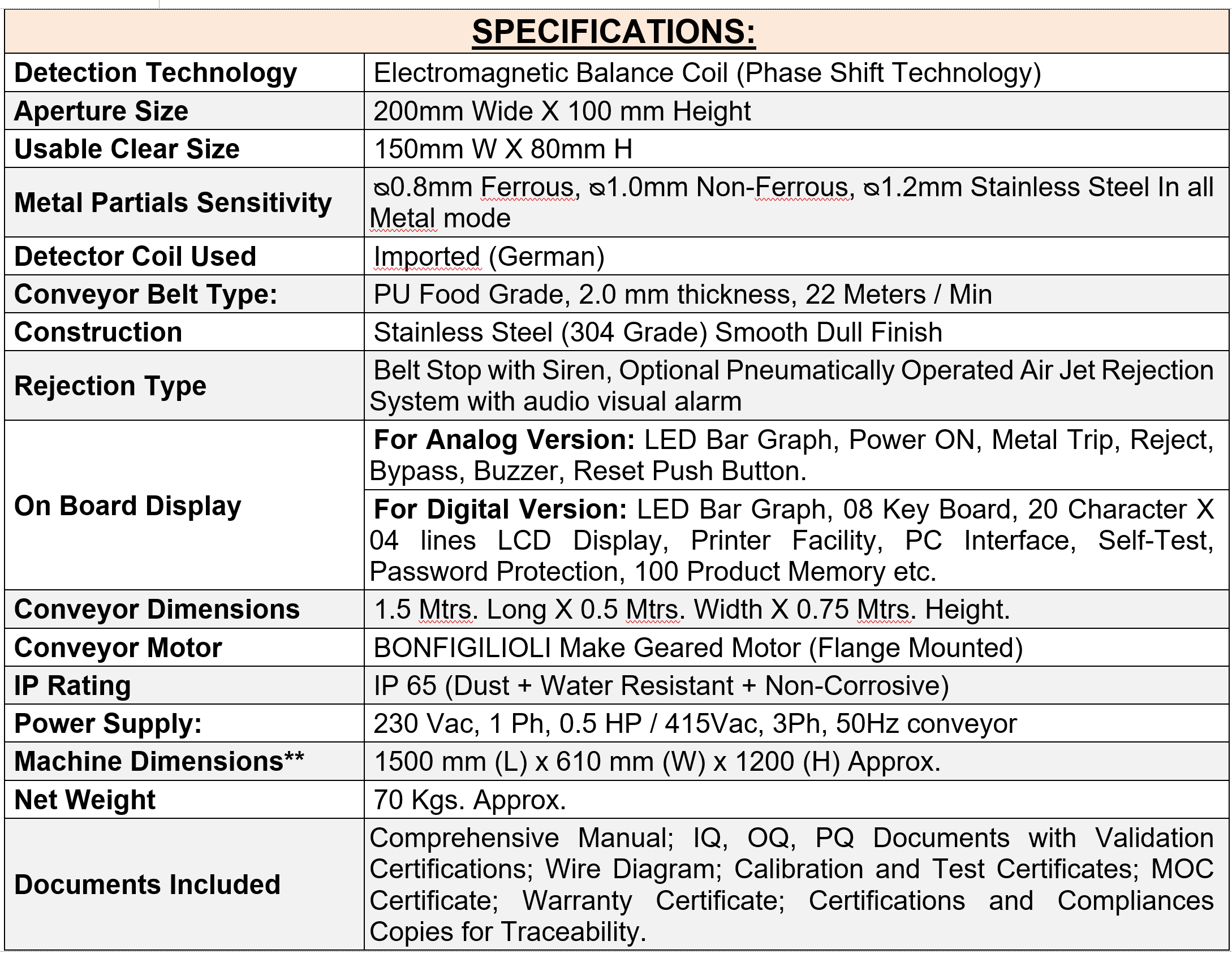

    SPECIFICATIONS:

    Detection Technology

    Electromagnetic Balance Coil (Phase Shift Technology)

    Aperture Size

    200mm Wide X 100 mm Height

    Usable Clear Size

    150mm W X 80mm H

    Metal Partials Sensitivity

    ᴓ0.8mm Ferrous, ᴓ1.0mm Non-Ferrous, ᴓ1.2mm Stainless Steel In all Metal mode

    Detector Coil Used

    Imported (German)

    Conveyor Belt Type:

    PU Food Grade, 2.0 mm thickness, 22 Meters / Min

    Construction

    Stainless Steel (304 Grade) Smooth Dull Finish

    Rejection Type

    Belt Stop with Siren, Optional Pneumatically Operated Air Jet Rejection System with audio visual alarm

    On Board Display

    For Analog Version: LED Bar Graph, Power ON, Metal Trip, Reject, Bypass, Buzzer, Reset Push Button.

    For Digital Version: LED Bar Graph, 08 Key Board, 20 Character X 04 lines LCD Display, Printer Facility, PC Interface, Self-Test, Password Protection, 100 Product Memory etc.

    Conveyor Dimensions

    1.5 Mtrs. Long X 0.5 Mtrs. Width X 0.75 Mtrs. Height.

    Conveyor Motor

    BONFIGILIOLI Make Geared Motor (Flange Mounted)

    IP Rating

    IP 65 (Dust + Water Resistant + Non-Corrosive)

    Power Supply:

    230 Vac, 1 Ph, 0.5 HP / 415Vac, 3Ph, 50Hz conveyor

    Machine Dimensions**

    1500 mm (L) x 610 mm (W) x 1200 (H) Approx.

    Net Weight

    70 Kgs. Approx.

    Documents Included

    Comprehensive Manual; IQ, OQ, PQ Documents with Validation Certifications; Wire Diagram; Calibration and Test Certificates; MOC Certificate; Warranty Certificate; Certifications and Compliances Copies for Traceability.
