Detail

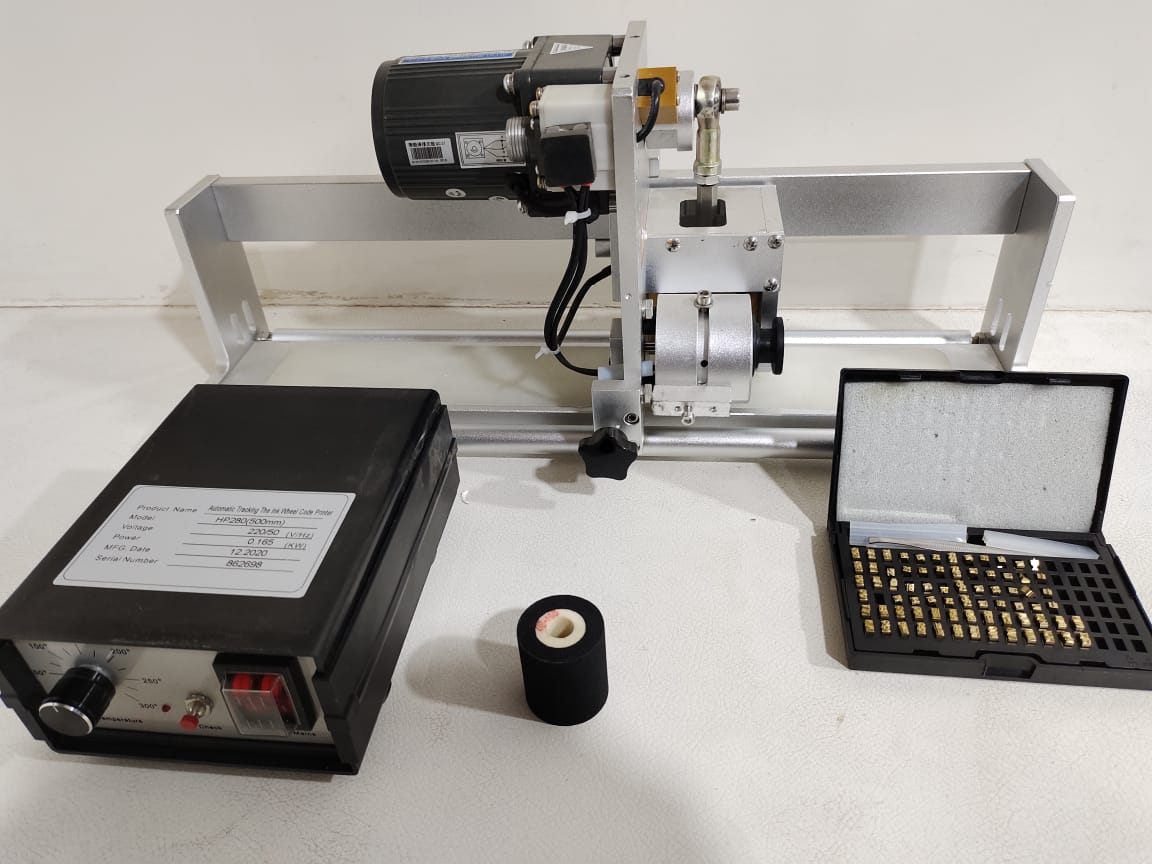

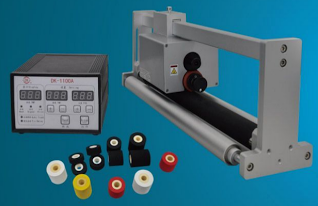

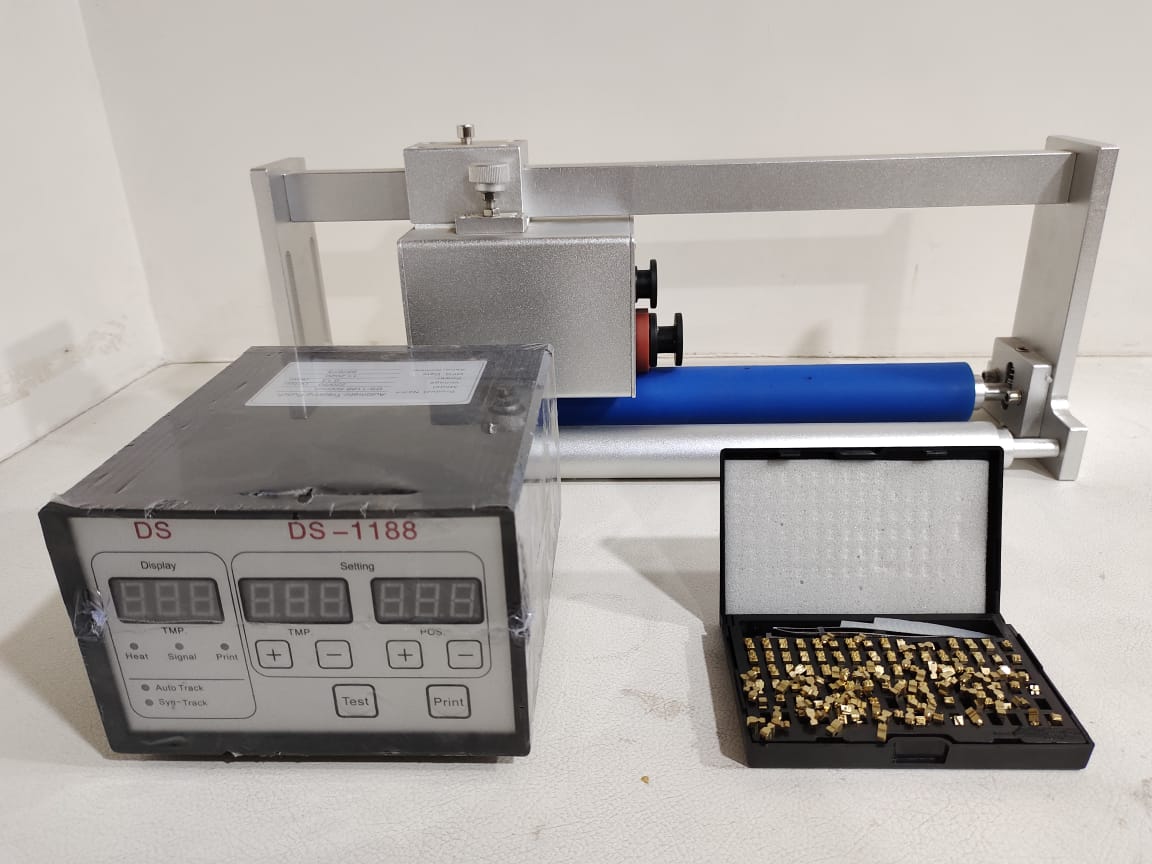

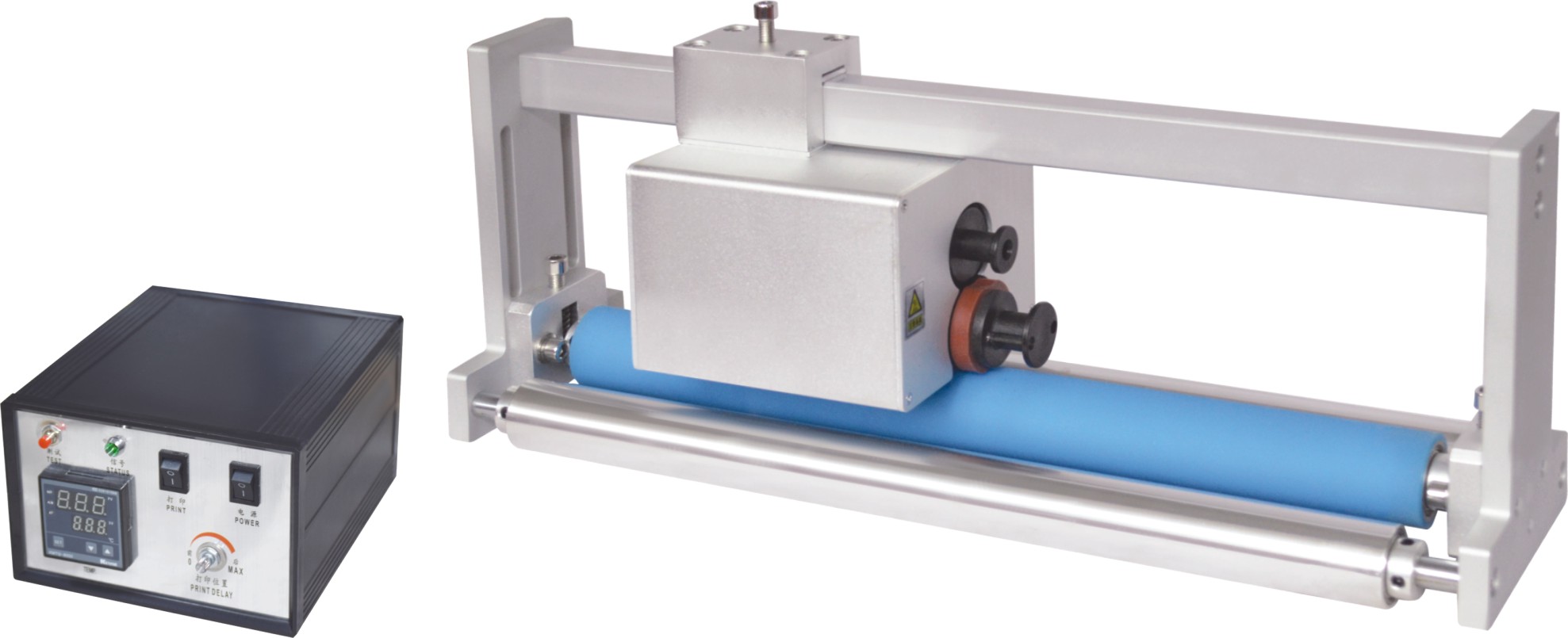

Fully Automatic PLC based Continuous On-line Hot Roll Rotary Coder Model HRC – 35 – OC with Digital LED display &soft touch keys. This coder (equivalent to MARKEM coders) uses instant dry hot wax ink roller and heated brass stereos for smudge free printing of 4 to 6 lines of size 35 X 50 mm & speed upto 300 packets per min. (Free accessories include 2 mm Brass type Numeric Character Set, Hot Wax Ink Cartridge & Print Sensor). This type of coder is suited for continuous FFS (Form Fill Seal) machines, pouch packing / flow wrapping / blister pack machines, biscuit / masala packing, conveyor systems, winder-rewinder system, etc.
SPECIFICATIONS:
|
Supply Voltage |
230 Vac ± 10%, 100 VA |
|
Printing Area |
6 lines (35 mm X 60 mm) |
|
Printing Speed |
Max. 300 imprints / min. (25 Meters / min.) |
|
Prints using |
Brass / Rubber stereos |
|
Inking Medium |
Instant dry thermo-fusible hot wax ink roll. |
|
Printing Medium |
Instant drying wax ink (Black, Red*, White*, Yellow*, etc.) |
|
Impressions |
Appx. 1,00,000 per 32-mm. replaceable cartridge. |
|
Weight |
10 Kgs, 5 Kgs (Only head) |
