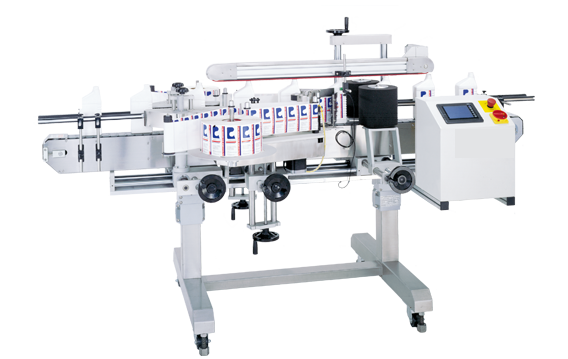

    • front-back-labeling-pl6221.png

    Detail

    Fully Automatic Sticker Labeling Machine Model AVLM – 100 – Flat for applying sticker labels in roll form on flat (also square* & oval*) bottles at speeds up to 80 bottles per minute along with Clamp Down Conveyor on top of bottles to provide stability. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. Online Batch / Bar Code or Inkjet printer connected to computer for variable data can be integrated to print variables like BNo, MfgDt, ExpDt, MRP, Product Name, Ingredients, Address, etc. along with Serial No. & Bar Code also available.

    Same as above with 750W Servo system Model AVLM – 100-Flat-S

    SPECIFICATIONS:

    Size Of Container:

    30 mm to 100 mm

    Height of Container:

    35 mm to 270 mm

    Label Width:

    25 x 25 to 100 x 300 mm, Gap 3mm minimum.

    Label Roll Dia:

    Max. OD 280mm, ID 76mm

    Power Supply:

    230 Vac, 1 Phase, 0.5 HP

    Speed:

    Up to 80 Cont. / Min.

    Accuracy:

    ±1.5 mm

    Enquiry Now
