    Detail

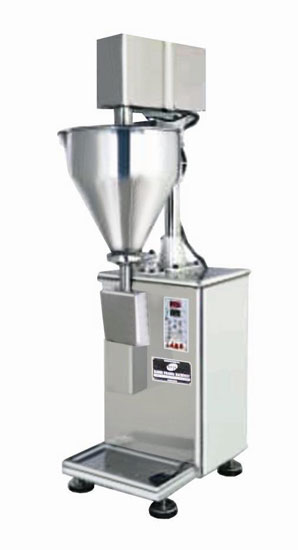

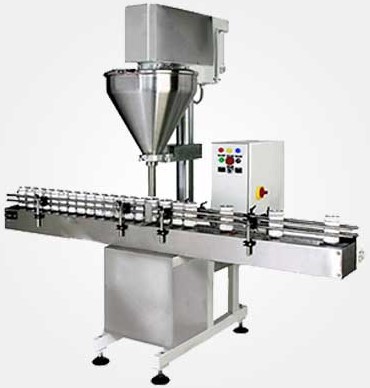

    Automatic Powder Auger Filling Machine Model APF-100 is an economical solution to your filling production line conveyor to reliably move and position containers for filling, dispense the required amount of product, and then quickly move the filled containers away to other equipment in your line (e.g. cappers, labelers, etc.). Microprocessor based control system provides precise selection and adjustment of fill amounts and machine functioning. This is useful for filling of all types of Powders in Bottles, Jars& Glasses.

    SPECIFICATIONS:

    Filling Range

    15 gm – 1000 gm± 1 – 2 % (Std. 100 gm.)

    Can Fill

    Bottles 15 mm to 200 mm Diameter

    Output

    20 to 120 Bottles/min

    Motor

    2 HP Three Phase, 415 Volts.

    Dimensions / Approx. Weight

    2200mm x 200mm x 1600mm / 450 kgs
