Detail

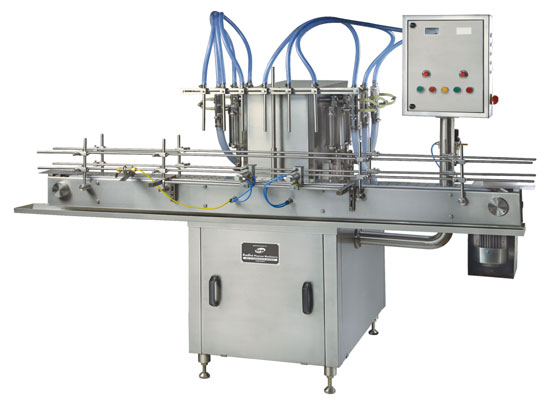

Automatic 4 Head Bottle Filling Machine Model AFM-100-4 is suitable for filling Pharmaceuticals, Beverages, etc. such as juices, petroleum jelly, syrups, drinking water, paints, strainers, perfumes, flavored milk, dahi, adhesives, shampoo, edible oil, hair oil, lube oils, coolants etc. on a continuous conveyor line with no bottle no fill attachment. The speed depends on number of syringes & has diving arrangement for foaming products as well as specially designed nozzles for drip proof filling. All contact parts are made of SS (304/316). The stroke of the syringe is adjustable to adjust for the quantity to be dispensed. This is useful for filling of Beverages, Milk products, etc. in Bottles & Glasses.
SPECIFICATIONS:
|
Filling Range |
15 ml – 1000 ml ± 1 – 2 % (Std. 250 ml.) |
|
Can Fill |
Bottles 15 mm to 200 mm Diameter |
|
Output |
20 to 120 Bottles/min |
|
Motor |
2 HP Three Phase, 415 Volts. |
|
Dimensions / Approx. Weight |
2200mm x 200mm x 1600mm / 450 kgs |
