    • pro4Model WPM-260.jpg

    Detail

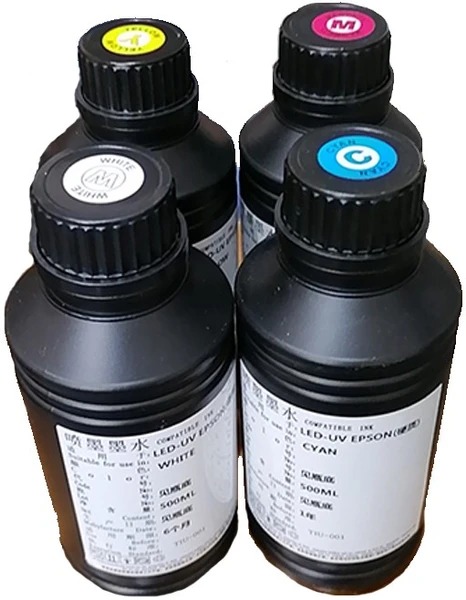

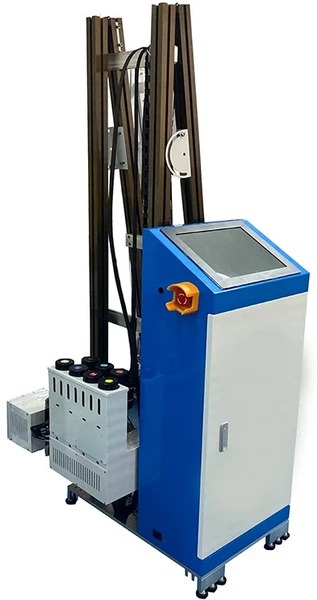

    Automatic 3D Wall Printing Machine Model WPM-260 can be applied to a variety of materials wall, for example White Wall, Latex Paint Wall, Shell powder wall, ceramic tile, glass KT board. Supports printing color ink and white ink at the same time. Print height can be customized, unlimited length. One printing head can print 15,000 – 40,000 square meters. High speed processor with 8-core CPU. Complete computer is integrated, so no need for laptop. High quality UV ink. Equipped with ink curing lights for uv model, no restrictions on any material quality of fine picture, good color, waterproof protection of the sun protection more lasting, no need for waterproof treatment. One set of inks - 5 colors; Red / Yellow / Blue / Black / White; each color 500ml; one set of uv ink costs Rs. 10,500/-, which can print 150 square meters. So the average of Ink consumption 16.7ml/sqm. The cost is Rs. 70/sqm. One set of water-based inks cost Rs. 8,500/-, cost is Rs. 57/sqm.

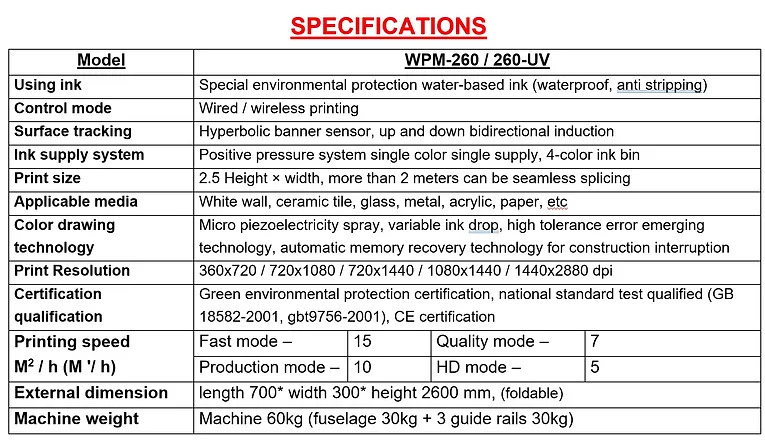

    SPECIFICATIONS

    Model

    WPM-260 / 260-UV

    Using ink

    Special environmental protection water-based ink (waterproof, anti stripping)

    Control mode

    Wired / wireless printing

    Surface tracking

    Hyperbolic banner sensor, up and down bidirectional induction

    Ink supply system

    Positive pressure system single color single supply, 4-color ink bin

    Print size

    2.5 Height × width, more than 2 meters can be seamless splicing

    Applicable media

    White wall, ceramic tile, glass, metal, acrylic, paper, etc

    Color drawing technology

    Micro piezoelectricity spray, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption

    Print Resolution

    360x720 / 720x1080 / 720x1440 / 1080x1440 / 1440x2880 dpi

    Certification qualification

    Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification

    Printing speed

    M2 / h (M '/ h)

    Fast mode –

    15

    Quality mode –

    7

    Production mode –

    10

    HD mode –

    5

    External dimension

    length 700* width 300* height 2600 mm, (foldable)

    Machine weight

    Machine 60kg (fuselage 30kg + 3 guide rails 30kg)
