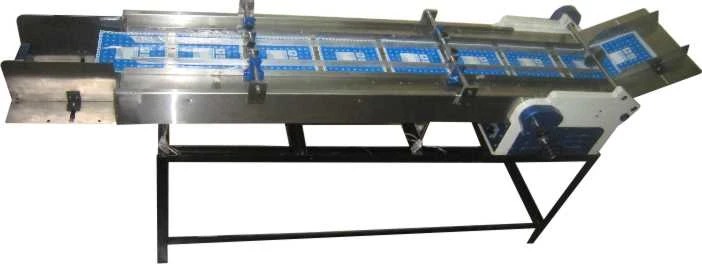

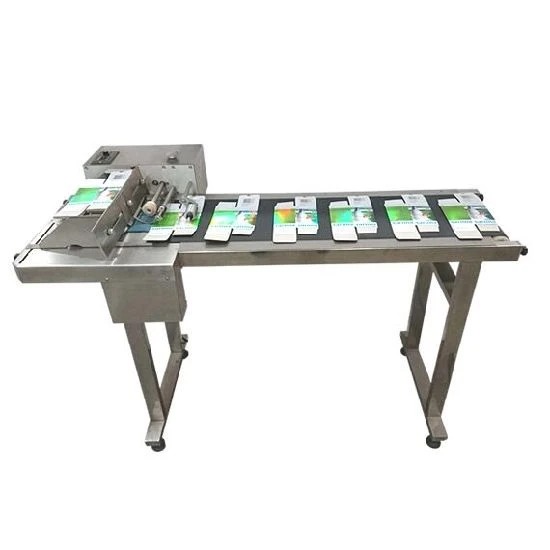

High Speed Stainless Steel variable speed Auto-Feeding Stacker for TTO with Conveying System Model SCS – 400 – T (16” x 1200mm) of size 400 mm width X 1.2 Meter long & 750 mm height Stainless Steel machine for automatically dispensing pouches, labels & cartons (Max. size 400mm X 500mm) from the stack at high variable speeds. This finds wide usage with the Thermal Transfer Over-Printers (Model TTO-W30J+, TTO-W50J) & is used to automatically feed large quantities of Labels, Pouches & Cartons at high speeds with guaranteed accuracy for picking of single item from the slanted stack. The labels, pouches or cartons are stacked on the tray (Dispenser) for feeding, automatically picked up, fed below the Print Head one by one via guide track and stacked back in the collection tray automatically at very high speeds.

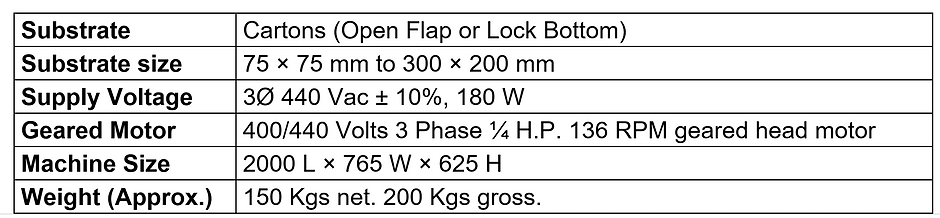

SPECIFICATIONS:
