Detail

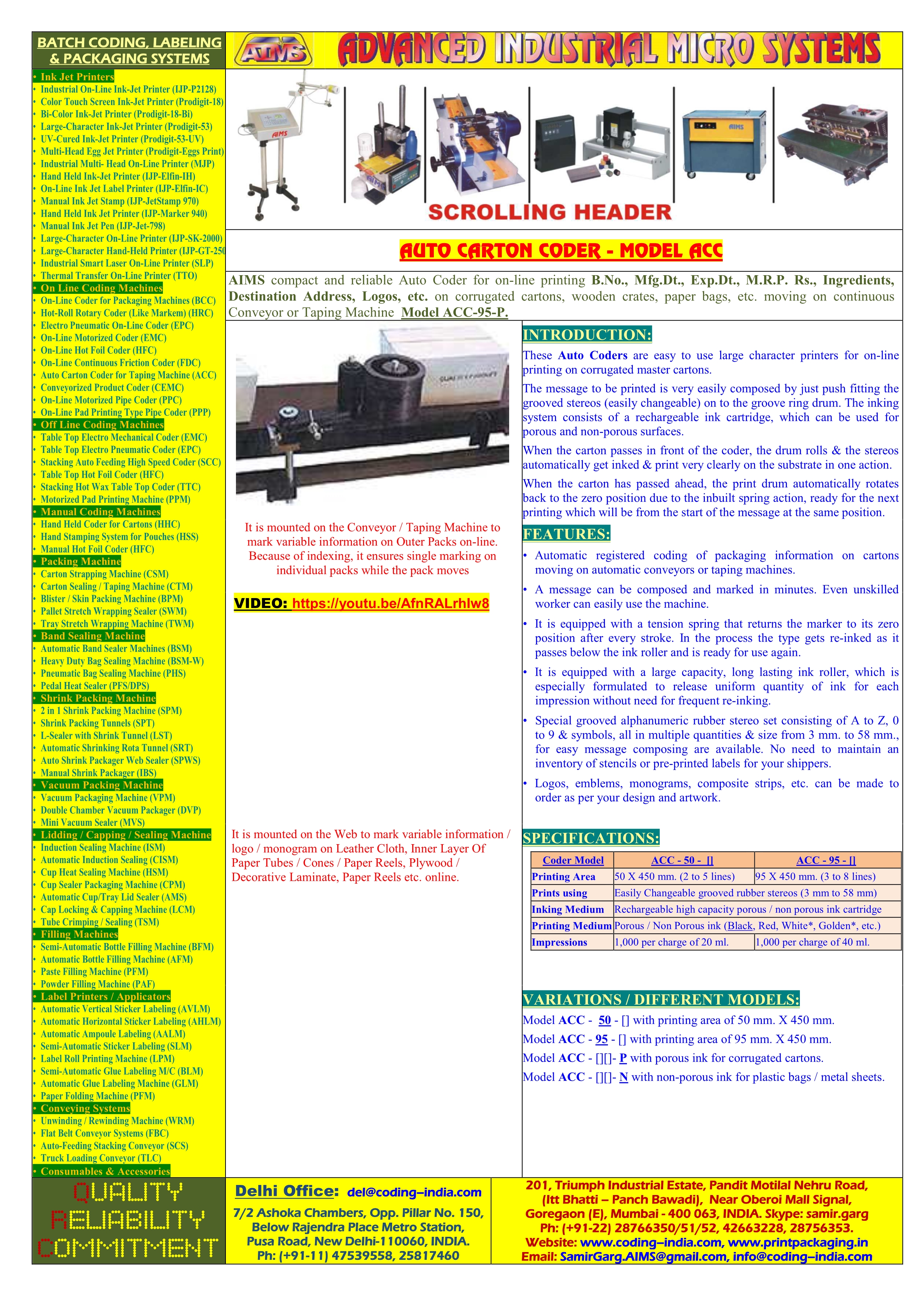

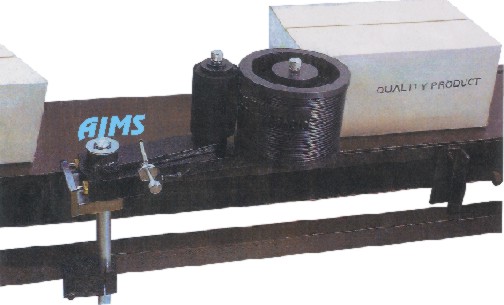

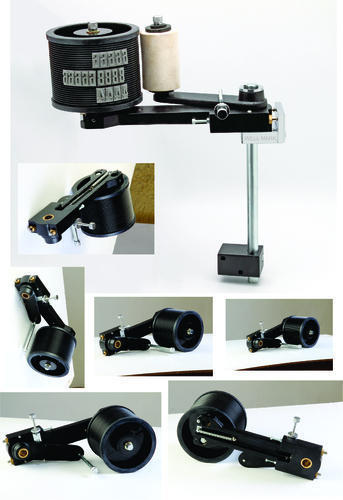

Auto Conveyor Coder Model ACC - 95 – P is a large character On-Line printer for in-house printing of Batch No., Product Name, Handling Instructions, LOGOs, etc. on Corrugated master cartons, cement sheets, plywood, etc. traveling on conveyor belt or taping line,in place of Stencils or Screen Printing. The message to be printed is composed by push fitting the easily changeable grooved stereos on to the grooved ring drum. The inking system consists of a rechargeable ink cartridge & the stereos re-ink automatically as they pass below the cartridge. Maximum printing area is 95 mm x 450 mm. (Set inclusive of 1 Ink Cartridge, 1 Lit. Ink, 14 mm. Character Set &Mounting Stand.) This coder is suitable for printing LOGOs & fixed information on Corrugated Cartons, etc.
SPECIFICATIONS:
|
Printing Area |
95 X 450 mm. (3 to 8 lines) |
|
Prints using |
Easily Changeable grooved rubber stereos (3 mm to 58 mm) |
|
Inking Medium |
Rechargeable high capacity porous / non porous ink cartridge |
|
Printing Medium |
Porous / Non Porous ink (Black, Red, White*, Golden*, etc.) |
|
Impressions |
1,000 per charge of 40 ml. |
